Imaginary Picture of Kepler-935 b

Display orbital revolution of Kepler-935 b around the hoststar Kepler-935
/
Exoplanet Name : Kepler-935 b
Alternate Name : "2MASS J19400520+4637091 b, K01716.01, KIC 9838949 b, KOI-1716 b, KOI-1716.01, WISE J194005.20+463709.1 b"
Status : Confirmed
Radius (Rjup / Re): 0.1200 (Rjup) 1.3451 (Rearth)
Mass (Mjup / Me): 0.0090 (Mjup) 2.8559 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0518 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0134
Orbital Period(Observed/Estimated) 4.88 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.5785
Star Radiation at Atmospheric Boundary: 133401.0 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 853.0 (K)
Blackbody T 0.3(K) 801.0 (K)
Blackbody T 0.7(K) 648.1 (K)
Tidally Locked Blackbody T 0.1(K) 1014.4 (K)
Tidally Locked Blackbody T 0.3(K) 952.6 (K)
Size Class: super-Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : Kepler-935
Alternate Name : "2MASS J19400520+4637091, KIC 9838949, KOI-1716, WISE J194005.20+463709.1"
Star Distance(LY) : 1538.2
Stellar Radius(Rsun) : 0.7 (Rsun Measured)
Stellar Mass(Msun) : 0.8 (Msun Measured) 0.8 (Msun Estimated)
Star Age : 3.8 (GY)
Temperature : 4921 (K)
Spectral type : K3
UV portion[%]: 2.9
Visible portion[%]: 36.3
IR portion[%]: 60.8
Metalicity : -0.0
Absolute Magnitude: 4.9
Apparent Magnitude: 13.3
Right Ascension(RA) 295.0217
Declination (DEC) 46.6192
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Timothy D. Morton, Stephen T. Bryson, Jeffrey L. Coughlin, Jason F. Rowe, Ganesh Ravichandran, Erik A. Petigura, Michael R. Haas, and Natalie M. Batalha"
Discovery Paper - Title FALSE POSITIVE PROBABILITIES FOR ALL KEPLER OBJECTS OF INTEREST: 1284 NEWLY VALIDATED PLANETS AND 750 LIKELY FALSE POSITIVES
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=Kepler-935&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/Kepler-935%20b/
Kepler-935 b
Kepler-935 b

  • Kepler-935 b is an exoplanet orbiting the star Kepler-935, located about 1538.2 light-years (471.6 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star Kepler-935 has apparent magnitude of 13.3, with absolute magnitude of 4.9.
  • It is 0.8 times more massive and 0.7 times bigger compared with our Sun. The surface temperature is 4921 with its spectral types of K3
  • In this planetary system, the extrasolar planet Kepler-935 b orbits around the star Kepler-935 every 4.9 days with its orbital distance of 0.05 AU ( 7754606.3 km)

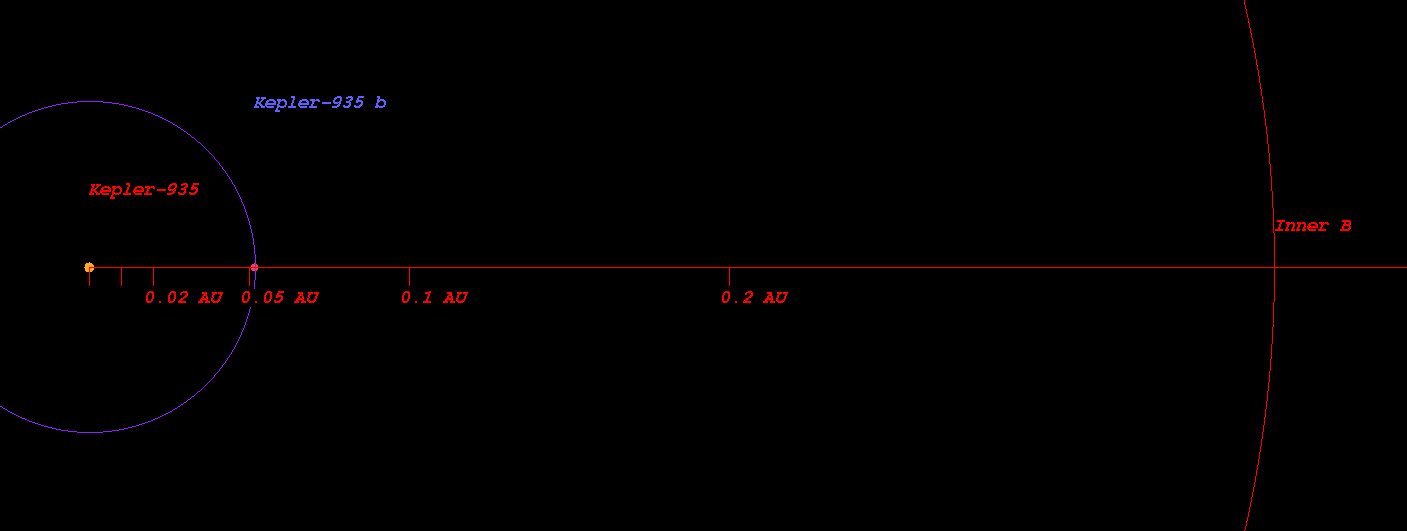

  • (Projected orbit of Kepler-935 b around its host star Kepler-935)


  • The Star Kepler-935 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.370 AU ( 55407626.1 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.512 AU ( 76587819.0 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.780 AU ( 116702887.3 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.148 AU ( 171733411.2 km)
  • Radiation at Planetary Boundary of Kepler-935 b : 133400.97 W/m2

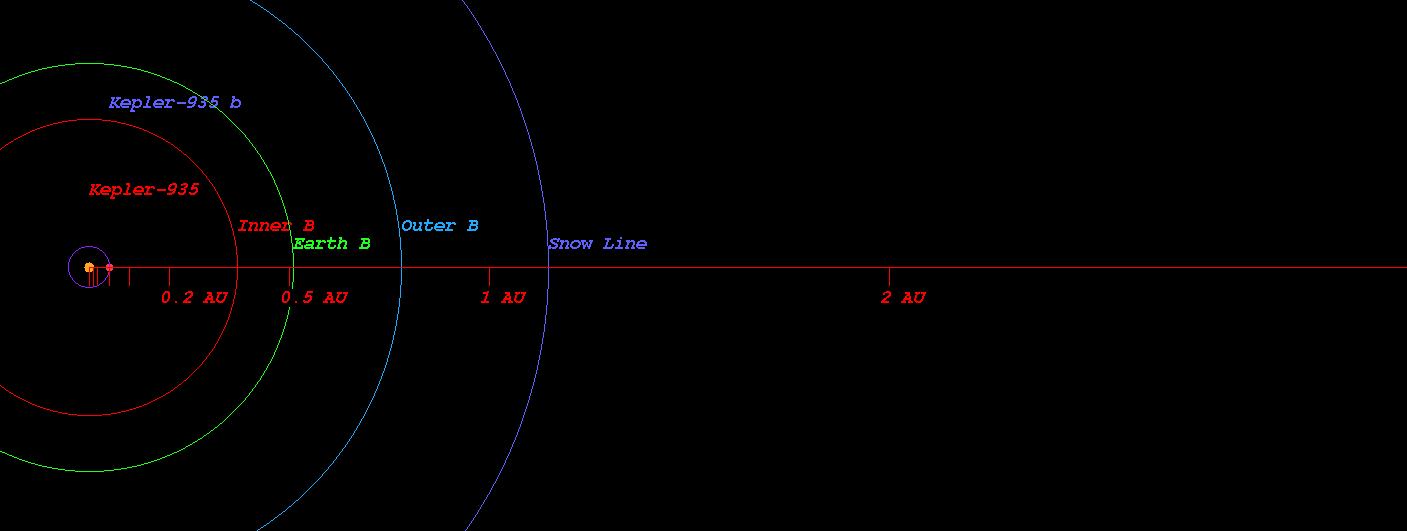

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star Kepler-935)



  • Kopparapu Recent Venus for Star Kepler-935 distance : 0.402 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star Kepler-935 distance : 0.509 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star Kepler-935 distance : 0.492 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star Kepler-935 distance : 0.540 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-935 distance : 0.926 AU
  • Kopparapu Outer Boundary for Early Mars for Star Kepler-935 distance : 0.977 AU

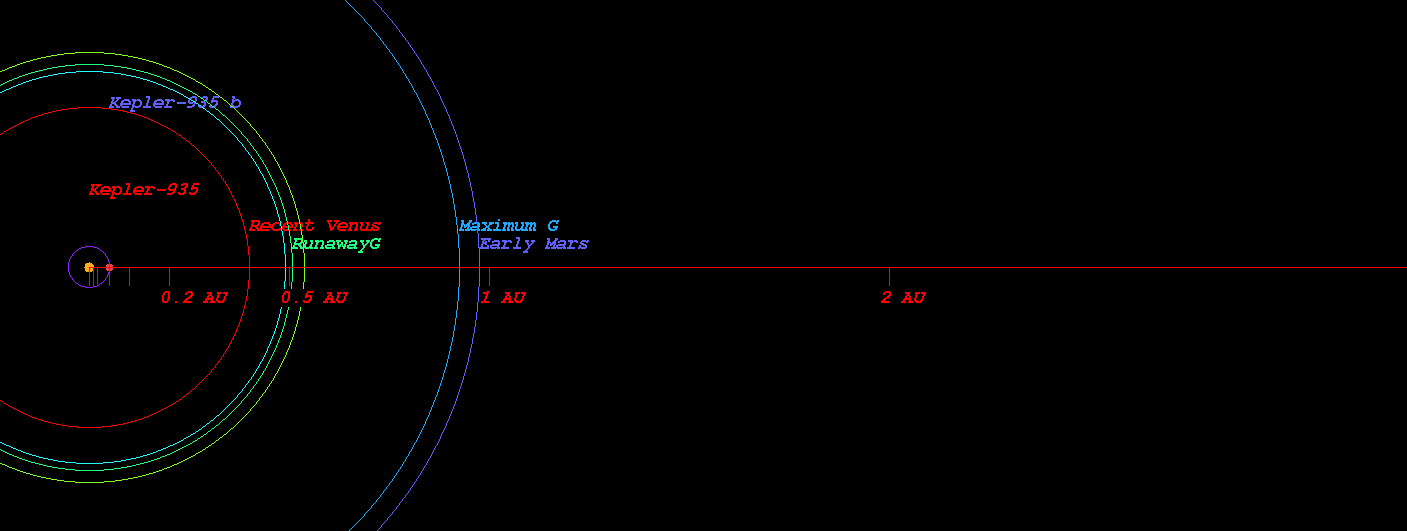

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star Kepler-935)



  • Original Kopparapu Recent Venus for Star Kepler-935 distance : 0.398 AU
  • Original Kopparapu Runaway Greenhouse for Star Kepler-935 distance : 0.525 AU
  • Original Kopparapu Moist Greenhouse for Star Kepler-935 distance : 0.526 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star Kepler-935 distance : 0.941 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star Kepler-935 distance : 0.979 AU

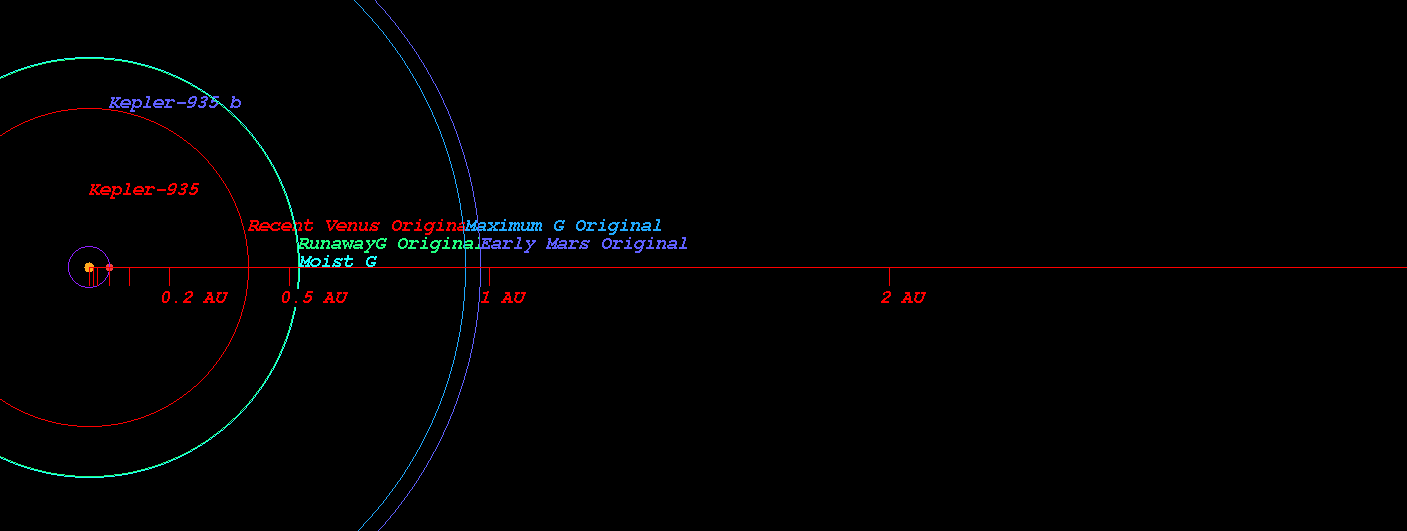

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star Kepler-935)

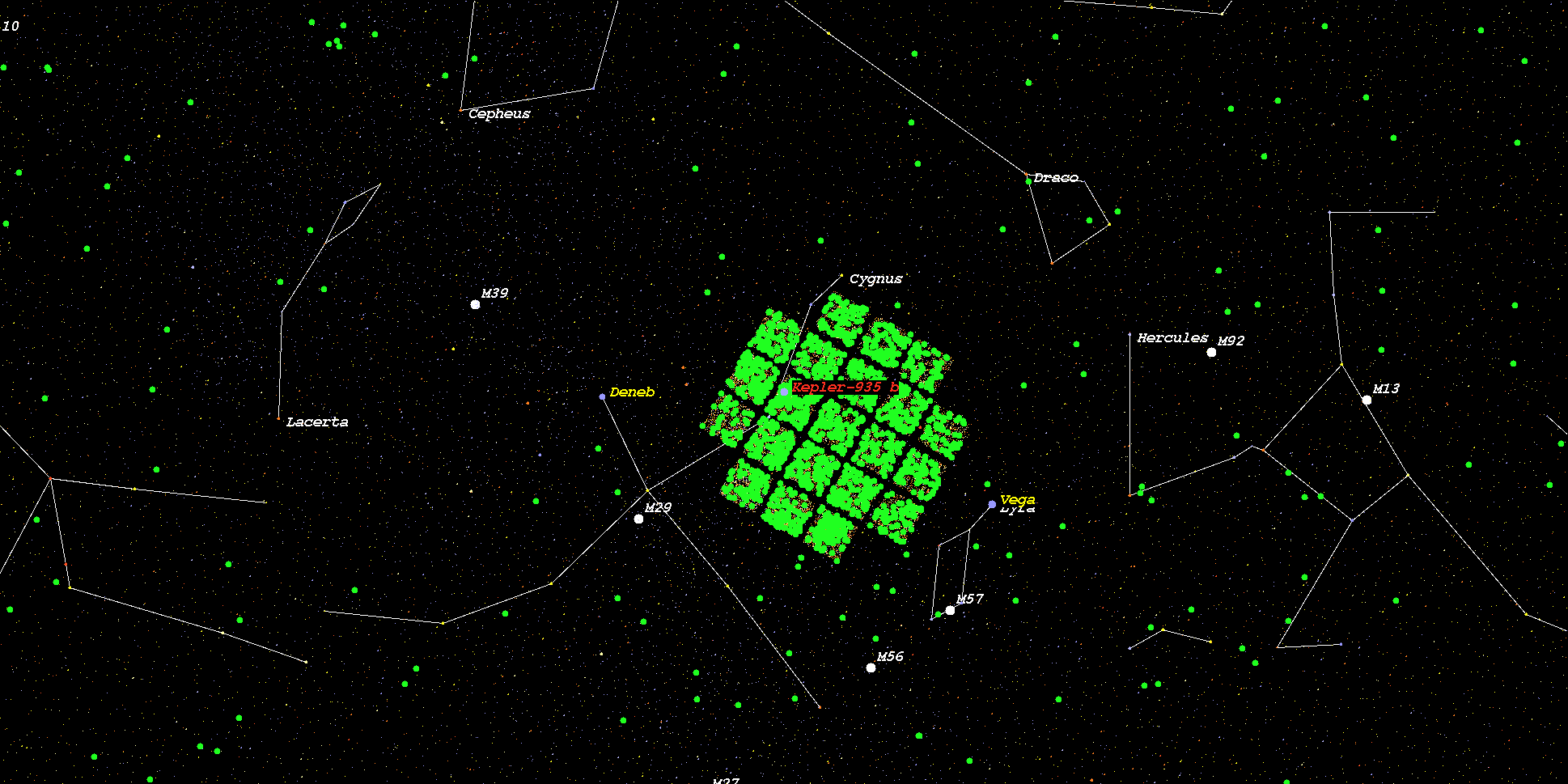

    (Position in Stellar Map of star Kepler-935 and its Exoplanet Kepler-935 b)



    (Zoomed position in Stellar Map of star Kepler-935 and its Exoplanet Kepler-935 b (zoom level 3))

    (Synthetic Spectrum of star Kepler-935*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
