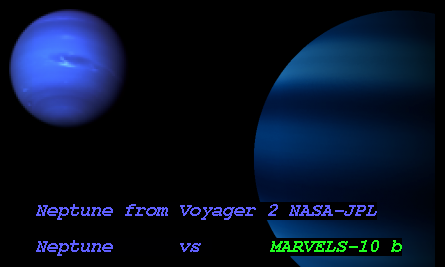

Imaginary Picture of MARVELS-10 b

Display orbital revolution of MARVELS-10 b around the hoststar TYC 4955-369-1
/
Exoplanet Name : MARVELS-10 b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 0.9078 (Rjup) 10.1759 (Rearth)
Mass (Mjup / Me): 14.8000 (Mjup) 4705.4824 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.7100 (AU) 0.7100 (AU Est.)
Eccentricity : 0.5300
Orbital Period(Yrs) 0.5949
Orbital Period(Observed/Estimated) 217.30 (Days Obs.) 215.31 (Days Est.)
Surface Gravity (G Earth) 45.4424
Star Radiation at Atmospheric Boundary: 2892.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 327.3 (K)
Blackbody T 0.3(K) 307.4 (K)
Blackbody T 0.7(K) 248.7 (K)
Tidally Locked Blackbody T 0.1(K) 389.3 (K)
Tidally Locked Blackbody T 0.3(K) 365.6 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : Radial Velocity
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : TYC 4955-369-1
Alternate Name : "BD-06 3628, 2MASS J12423861-0712572"
Star Distance(LY) : 685.7
Stellar Radius(Rsun) : 0.9 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 6190 (K)
Spectral type : F8
UV portion[%]: 0.3
Visible portion[%]: 1.5
IR portion[%]: 98.2
Metalicity : -0.4
Absolute Magnitude: 3.6
Apparent Magnitude: 10.2
Right Ascension(RA) 190.6609
Declination (DEC) -7.2159
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors
Discovery Paper - Title
Discovery Paper - Journal
Discovery Paper - URL
SIMBAD LINK
Open Exoplanet Database Link
MARVELS-10 b
MARVELS-10 b

  • MARVELS-10 b is an exoplanet orbiting the star TYC 4955-369-1, located about 685.7 light-years (210.2 pc) away from Solar System. Its discovery was publicly announced on 2017.
  • The host star TYC 4955-369-1 has apparent magnitude of 10.2, with absolute magnitude of 3.6.
  • It is 1.0 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 6190 with its spectral types of F8
  • In this planetary system, the extrasolar planet MARVELS-10 b orbits around the star TYC 4955-369-1 every 217.3 days with its orbital distance of 0.71 AU ( 106214488.2 km)

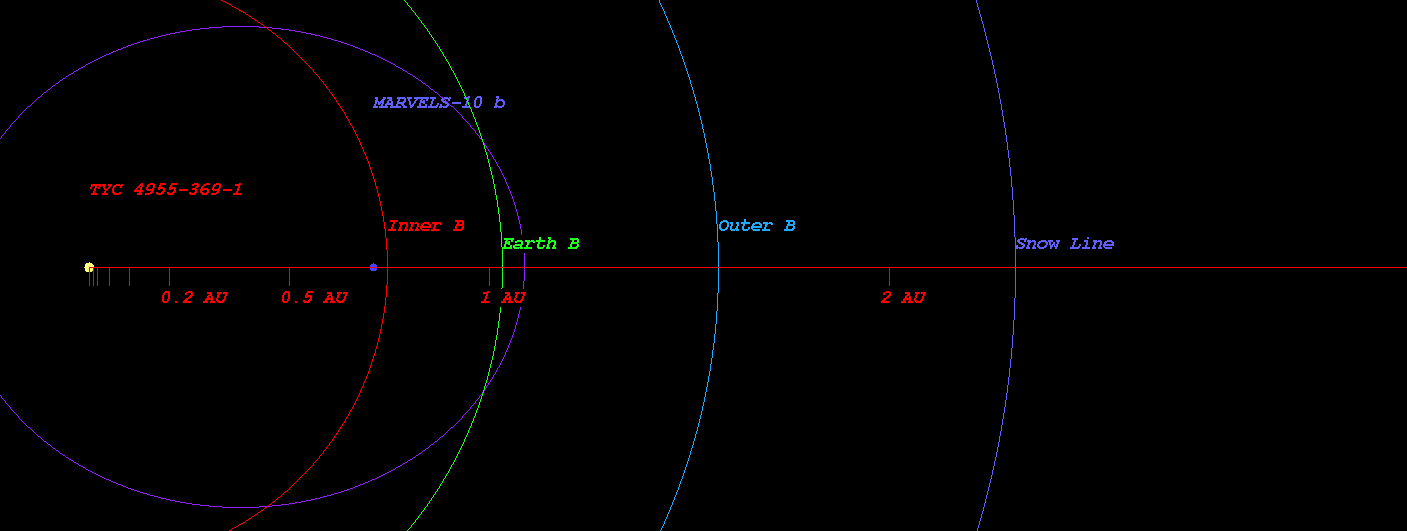

  • (Projected orbit of MARVELS-10 b around its host star TYC 4955-369-1)


  • The Star TYC 4955-369-1 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.747 AU ( 111758848.9 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.033 AU ( 154479935.3 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.574 AU ( 235393235.0 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.315 AU ( 346391457.2 km)
  • Radiation at Planetary Boundary of MARVELS-10 b : 2892.92 W/m2

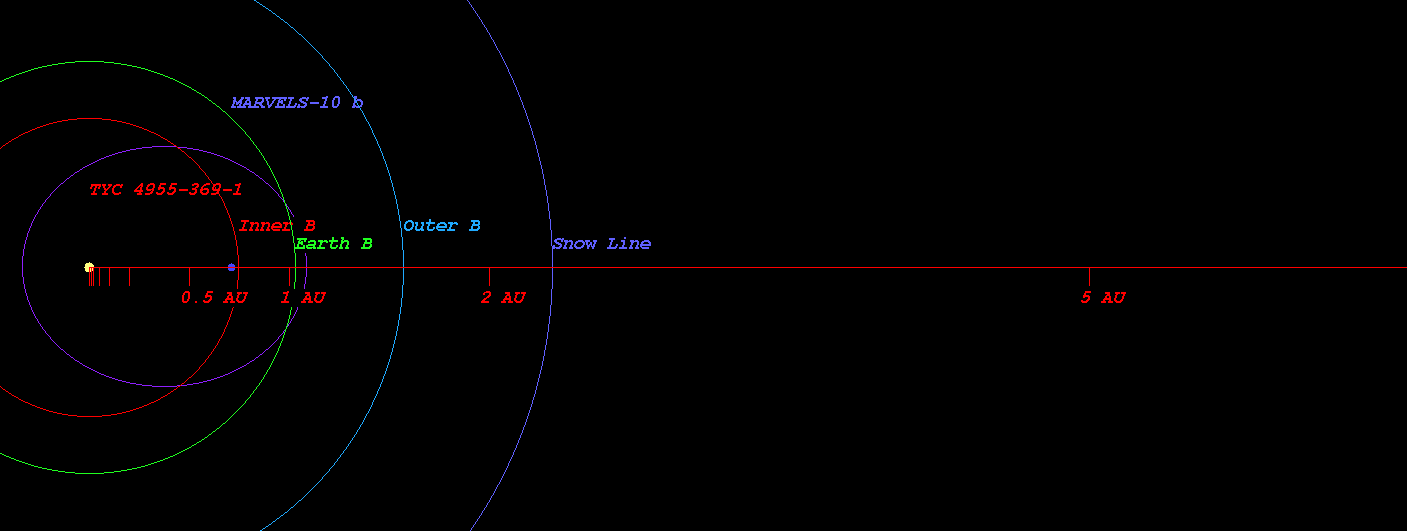

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star TYC 4955-369-1)



  • Kopparapu Recent Venus for Star TYC 4955-369-1 distance : 0.755 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star TYC 4955-369-1 distance : 0.956 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star TYC 4955-369-1 distance : 0.924 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star TYC 4955-369-1 distance : 1.012 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star TYC 4955-369-1 distance : 1.673 AU
  • Kopparapu Outer Boundary for Early Mars for Star TYC 4955-369-1 distance : 1.764 AU

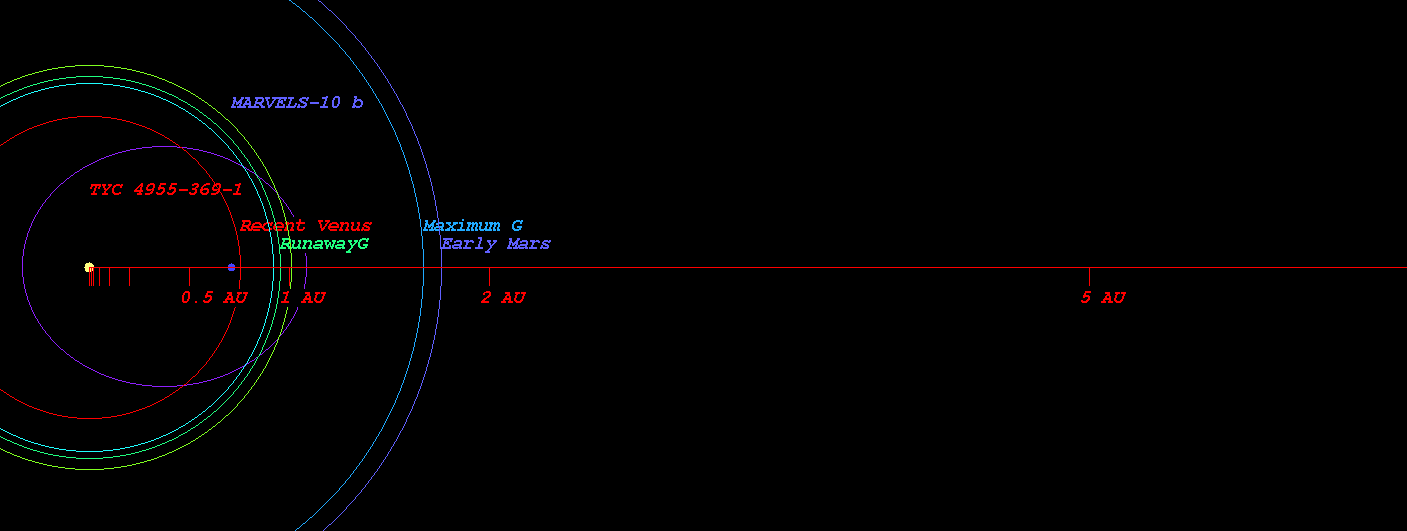

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star TYC 4955-369-1)



  • Original Kopparapu Recent Venus for Star TYC 4955-369-1 distance : 0.763 AU
  • Original Kopparapu Runaway Greenhouse for Star TYC 4955-369-1 distance : 0.981 AU
  • Original Kopparapu Moist Greenhouse for Star TYC 4955-369-1 distance : 1.009 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star TYC 4955-369-1 distance : 1.703 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star TYC 4955-369-1 distance : 1.771 AU

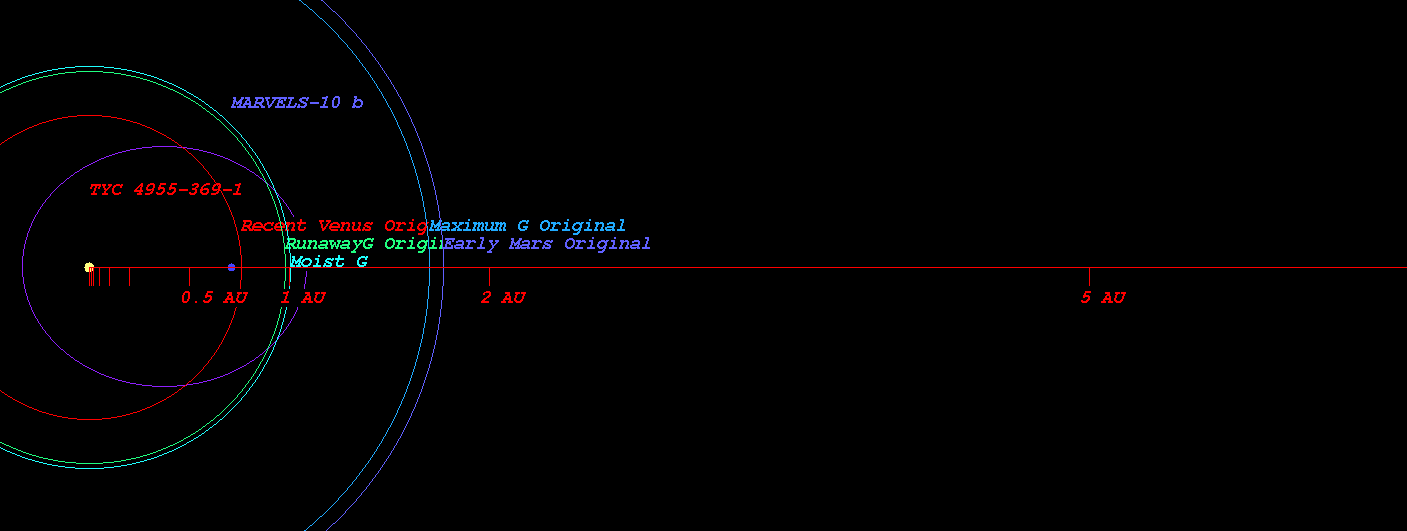

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star TYC 4955-369-1)

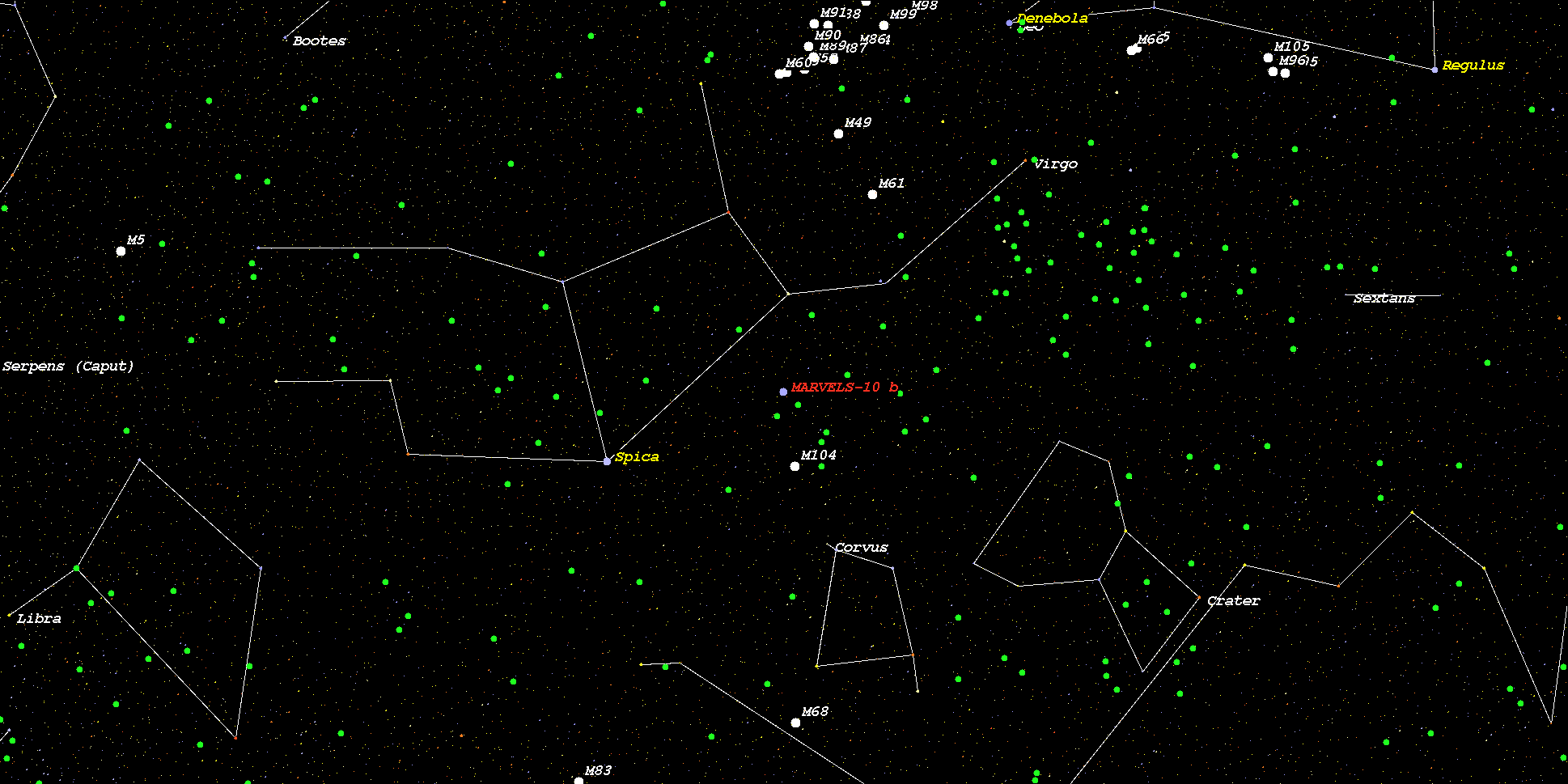

    (Position in Stellar Map of star TYC 4955-369-1 and its Exoplanet MARVELS-10 b)



    (Zoomed position in Stellar Map of star TYC 4955-369-1 and its Exoplanet MARVELS-10 b (zoom level 3))

    (Synthetic Spectrum of star TYC 4955-369-1*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
