Imaginary Picture of OGLE-2014-BLG-0124L b

Display orbital revolution of OGLE-2014-BLG-0124L b around the hoststar OGLE-2014-BLG-0124L
/
Exoplanet Name : OGLE-2014-BLG-0124L b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 0.9078 (Rjup) 10.1759 (Rearth)
Mass (Mjup / Me): 0.6400 (Mjup) 203.4803 (Mearth)
Semi Major Axis / Orbital Distance Calculated 3.4800 (AU) 3.4800 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0000
Orbital Period(Observed/Estimated) 0.00 (Days Obs.) 2513.41 (Days Est.)
Surface Gravity (G Earth) 1.9651
Star Radiation at Atmospheric Boundary: 8.2 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 75.5 (K)
Blackbody T 0.3(K) 70.9 (K)
Blackbody T 0.7(K) 57.4 (K)
Tidally Locked Blackbody T 0.1(K) 89.8 (K)
Tidally Locked Blackbody T 0.3(K) 84.4 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : Microlensing
Mass Detection : Microlensing
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : OGLE-2014-BLG-0124L
Alternate Name :
Star Distance(LY) : 11741.6
Stellar Radius(Rsun) : 0.8 (Rsun Estimated)
Stellar Mass(Msun) : 0.9 (Msun Measured) 0.0 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 3300 (K)
Spectral type : M9
UV portion[%]: 0.2
Visible portion[%]: 11.2
IR portion[%]: 88.6
Metalicity : 0.0
Absolute Magnitude: 9.2
Apparent Magnitude: 22.0
Right Ascension(RA) 270.6208
Declination (DEC) -28.3964
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors
Discovery Paper - Title
Discovery Paper - Journal
Discovery Paper - URL
SIMBAD LINK
Open Exoplanet Database Link
OGLE-2014-BLG-0124L b
OGLE-2014-BLG-0124L b

  • OGLE-2014-BLG-0124L b is an exoplanet orbiting the star OGLE-2014-BLG-0124L, located about 11741.6 light-years (3600.0 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star OGLE-2014-BLG-0124L has apparent magnitude of 22.0, with absolute magnitude of 9.2.
  • It is 0.9 times more massive and 0.8 times bigger compared with our Sun. The surface temperature is 3300 with its spectral types of M9

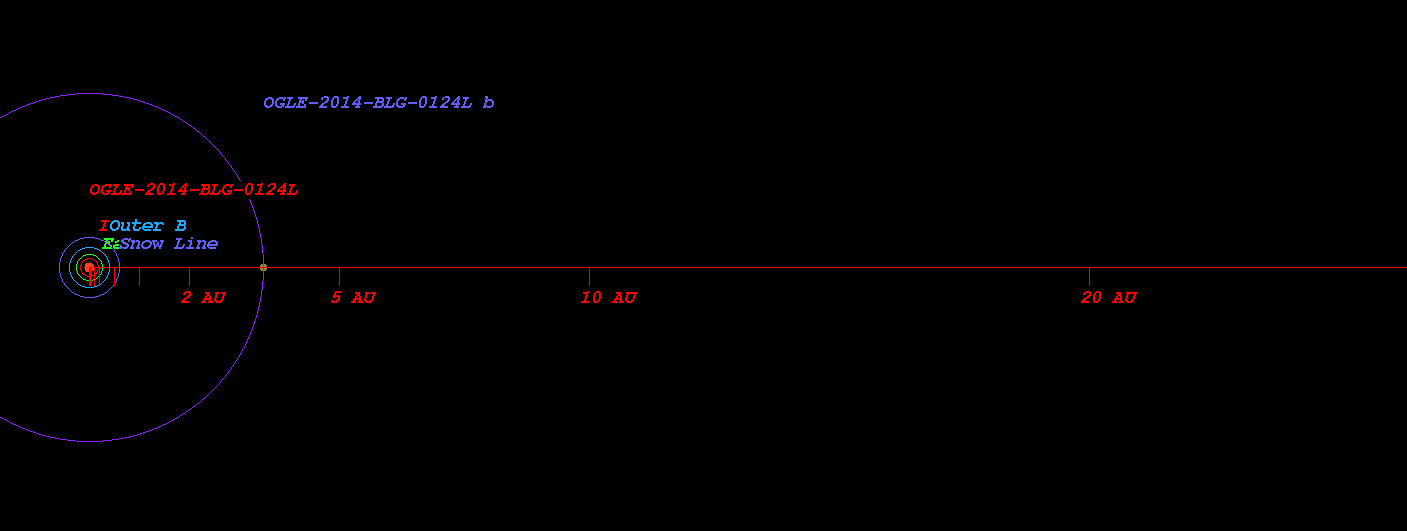

  • (Projected orbit of OGLE-2014-BLG-0124L b around its host star OGLE-2014-BLG-0124L)


  • The Star OGLE-2014-BLG-0124L 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.195 AU ( 29178616.3 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.270 AU ( 40332472.9 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.411 AU ( 61457763.2 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 0.605 AU ( 90437790.9 km)
  • Radiation at Planetary Boundary of OGLE-2014-BLG-0124L b : 8.21 W/m2

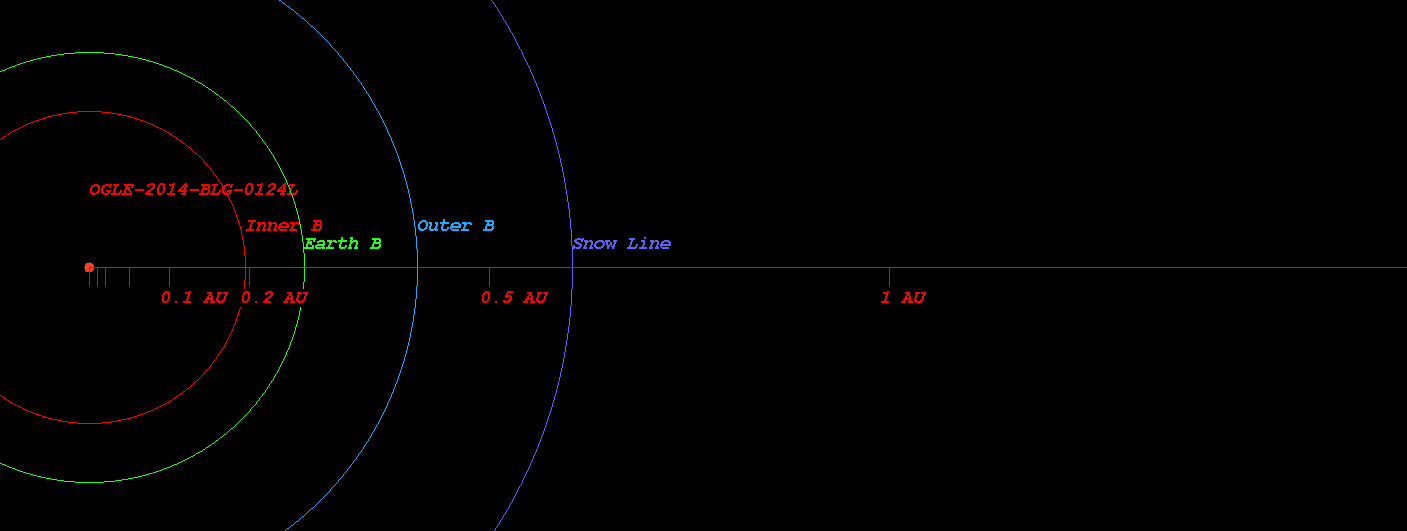

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star OGLE-2014-BLG-0124L)



  • Kopparapu Recent Venus for Star OGLE-2014-BLG-0124L distance : 0.221 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star OGLE-2014-BLG-0124L distance : 0.279 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star OGLE-2014-BLG-0124L distance : 0.270 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star OGLE-2014-BLG-0124L distance : 0.297 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star OGLE-2014-BLG-0124L distance : 0.549 AU
  • Kopparapu Outer Boundary for Early Mars for Star OGLE-2014-BLG-0124L distance : 0.579 AU

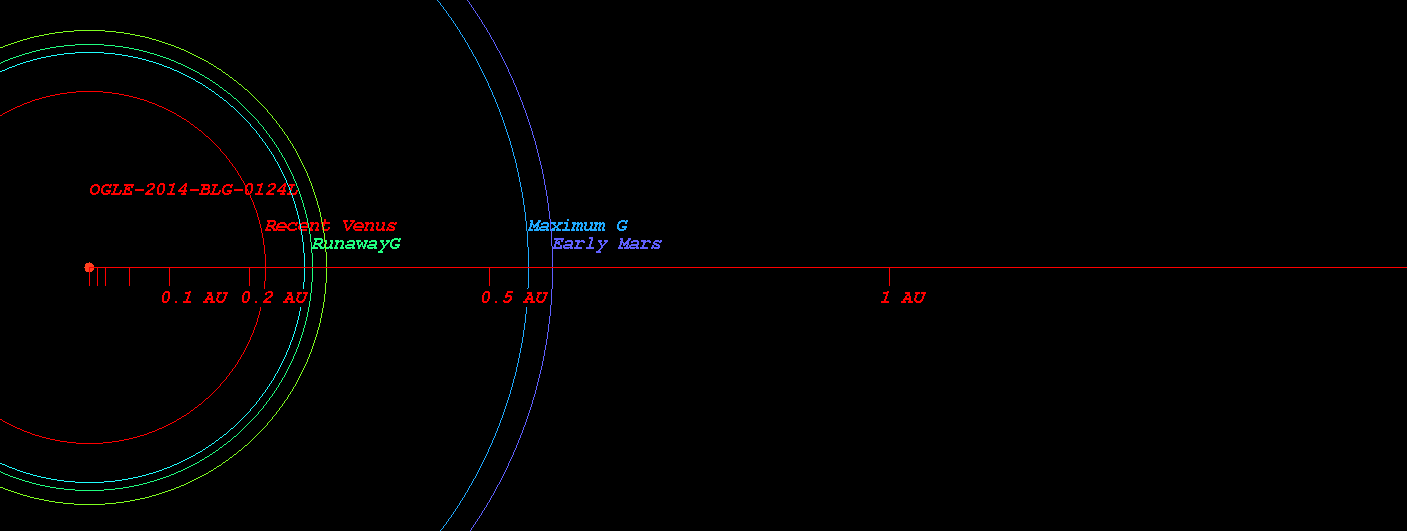

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star OGLE-2014-BLG-0124L)



  • Original Kopparapu Recent Venus for Star OGLE-2014-BLG-0124L distance : 0.219 AU
  • Original Kopparapu Runaway Greenhouse for Star OGLE-2014-BLG-0124L distance : 0.290 AU
  • Original Kopparapu Moist Greenhouse for Star OGLE-2014-BLG-0124L distance : 0.290 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star OGLE-2014-BLG-0124L distance : 0.558 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star OGLE-2014-BLG-0124L distance : 0.580 AU

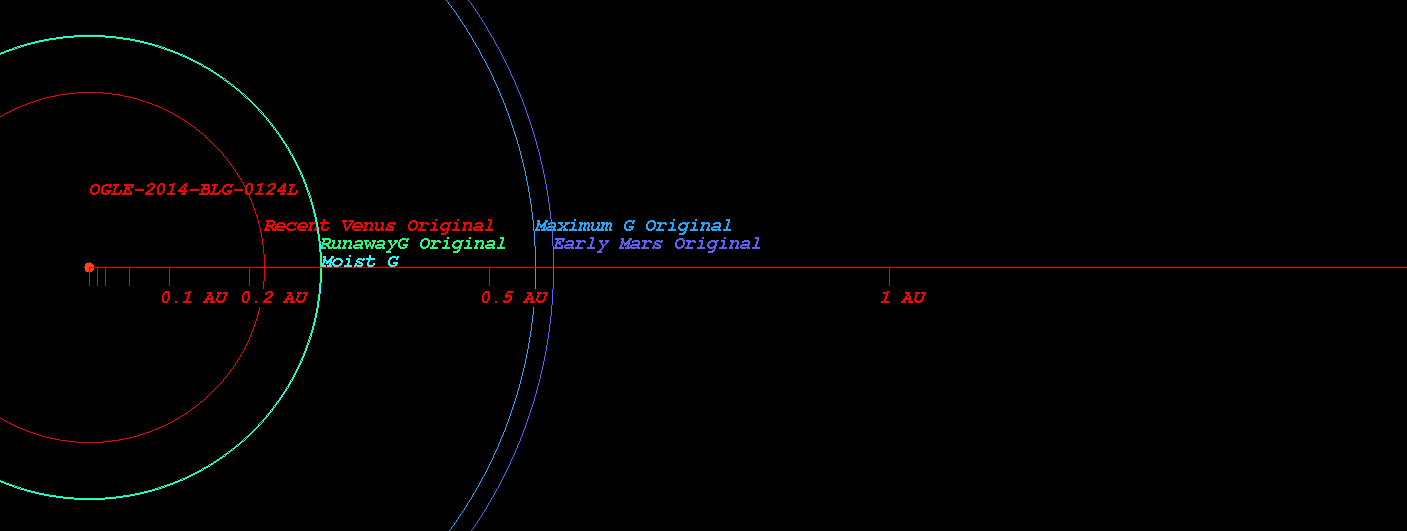

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star OGLE-2014-BLG-0124L)

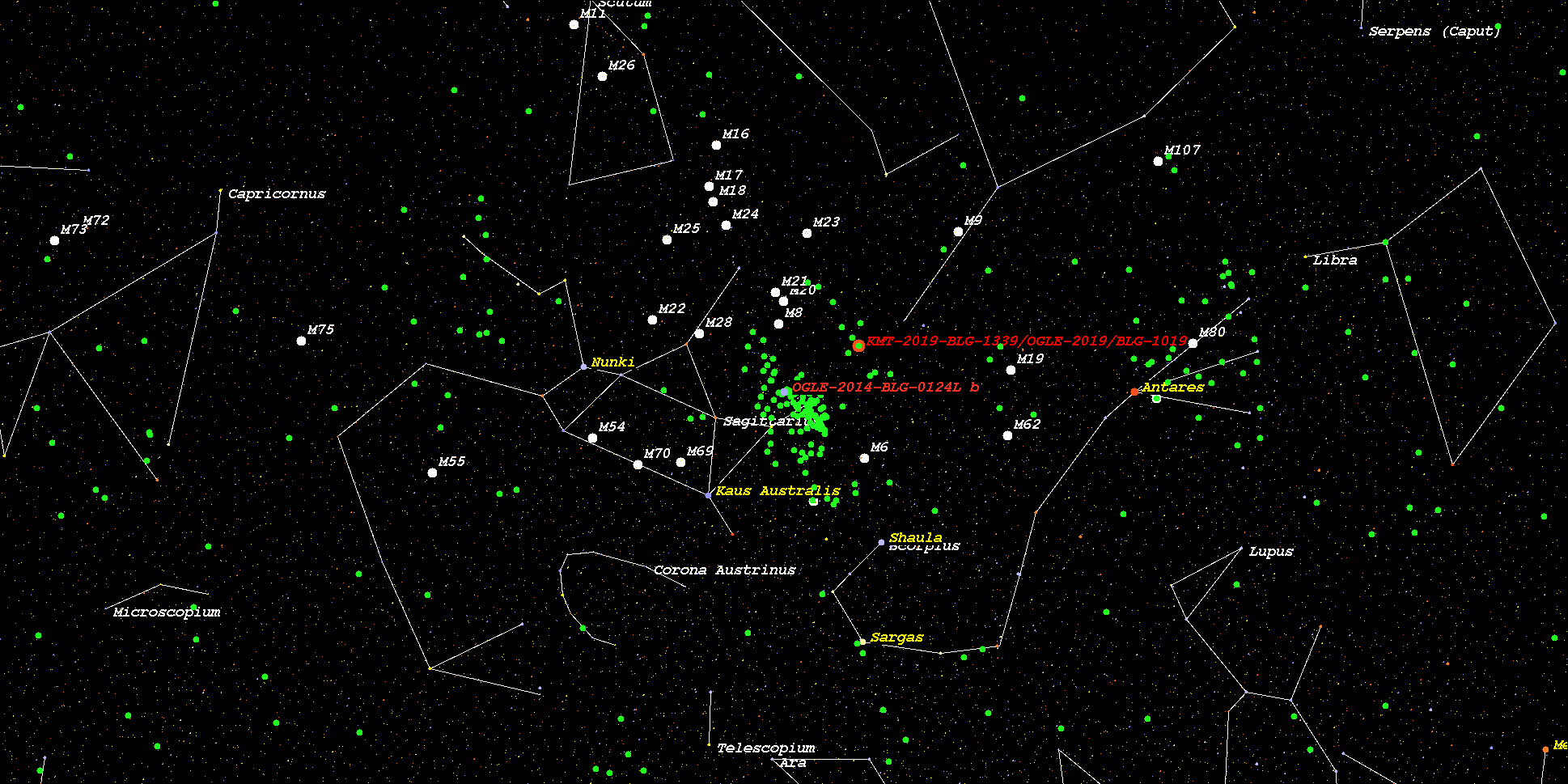

    (Position in Stellar Map of star OGLE-2014-BLG-0124L and its Exoplanet OGLE-2014-BLG-0124L b)



    (Zoomed position in Stellar Map of star OGLE-2014-BLG-0124L and its Exoplanet OGLE-2014-BLG-0124L b (zoom level 3))

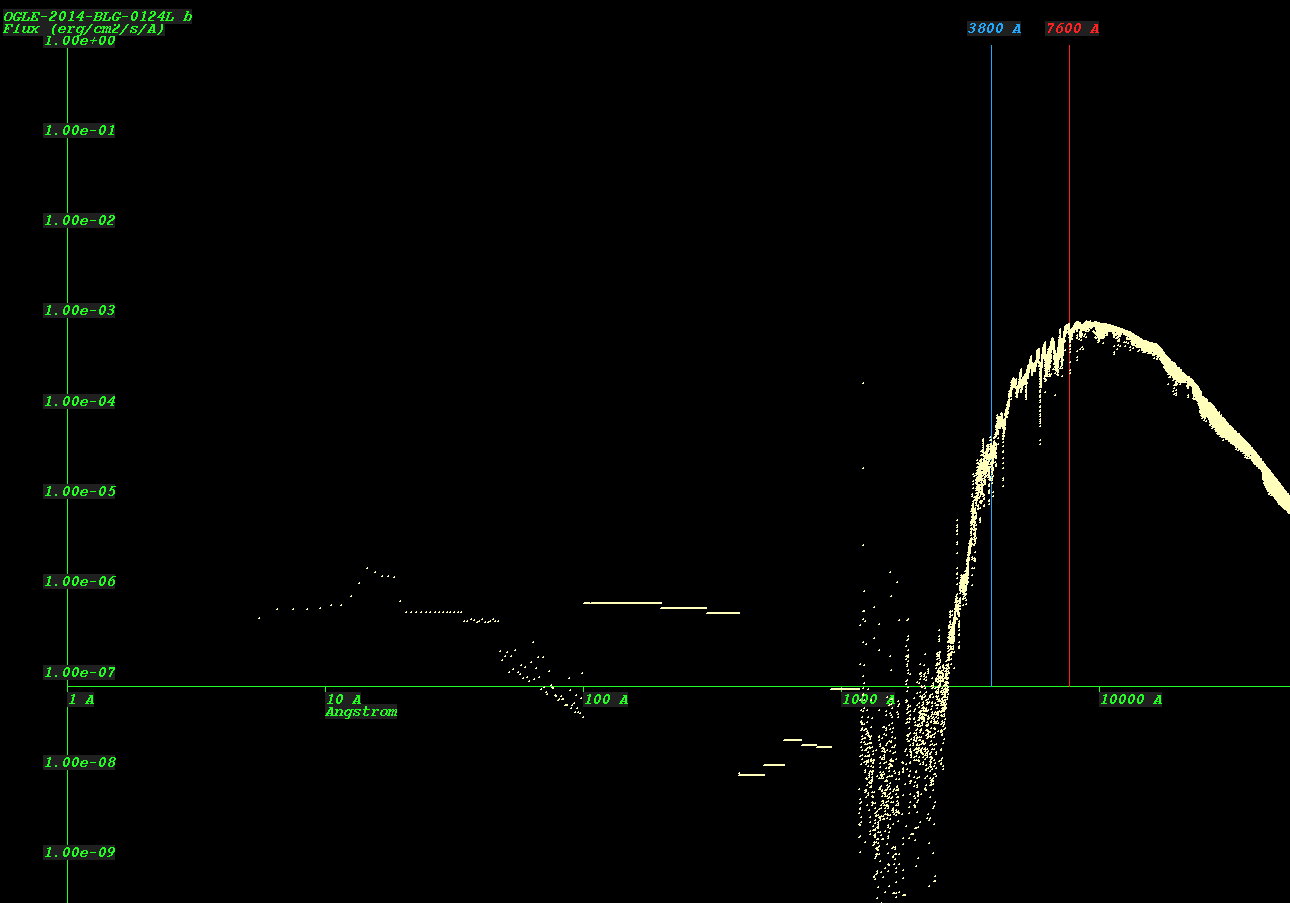

    (Synthetic Spectrum of star OGLE-2014-BLG-0124L*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
