Imaginary Picture of PSR 1719-14 b

Display orbital revolution of PSR 1719-14 b around the hoststar PSR 1719-14
/
Exoplanet Name : PSR 1719-14 b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 0.4000 (Rjup) 4.4836 (Rearth)
Mass (Mjup / Me): 1.0000 (Mjup) 317.9380 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0044 (AU) 0.0044 (AU Est.)
Eccentricity : 0.0600
Orbital Period(Yrs) 0.0002
Orbital Period(Observed/Estimated) 0.09 (Days Obs.) 0.09 (Days Est.)
Surface Gravity (G Earth) 15.8157
Star Radiation at Atmospheric Boundary: 0.0 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 14.8 (K)
Blackbody T 0.3(K) 13.9 (K)
Blackbody T 0.7(K) 11.2 (K)
Tidally Locked Blackbody T 0.1(K) 17.6 (K)
Tidally Locked Blackbody T 0.3(K) 16.5 (K)
Size Class: Neptune-size
Mass Class:
Detection Type : Timing
Mass Detection : Theoretical
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : PSR 1719-14
Alternate Name :
Star Distance(LY) : 3913.9
Stellar Radius(Rsun) : 0.0 (Rsun Estimated)
Stellar Mass(Msun) : 1.4 (Msun Measured) 0.0 (Msun Estimated)
Star Age : 12.5 (GY)
Temperature : 5500 (K)
Spectral type : PSR
UV portion[%]: 6.9
Visible portion[%]: 43.2
IR portion[%]: 49.9
Metalicity : 0.0
Absolute Magnitude: 11.6
Apparent Magnitude: 22.0
Right Ascension(RA) 259.7917
Declination (DEC) -14.6336
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title 0
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK
Open Exoplanet Database Link 0
PSR 1719-14 b
PSR 1719-14 b

  • PSR 1719-14 b is an exoplanet orbiting the star PSR 1719-14, located about 3913.9 light-years (1200.0 pc) away from Solar System. Its discovery was publicly announced on 2011.
  • The host star PSR 1719-14 has apparent magnitude of 22.0, with absolute magnitude of 11.6.
  • It is 1.4 times more massive compared with our Sun. The surface temperature is 5500 with its spectral types of PSR
  • In this planetary system, the extrasolar planet PSR 1719-14 b orbits around the star PSR 1719-14 every 0.1 days with its orbital distance of 0.00 AU ( 658230.6 km)

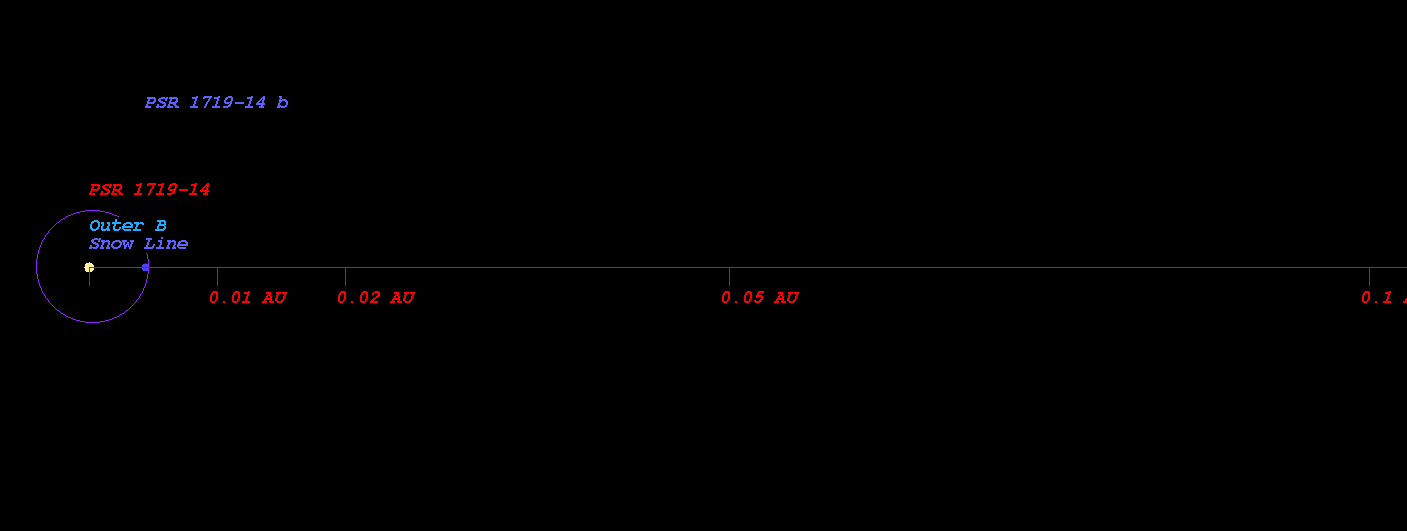

  • (Projected orbit of PSR 1719-14 b around its host star PSR 1719-14)


  • The Star PSR 1719-14 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.000 AU ( 1409.2 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.000 AU ( 1947.8 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.000 AU ( 2968.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 0.000 AU ( 4367.6 km)
  • Radiation at Planetary Boundary of PSR 1719-14 b : 0.01 W/m2

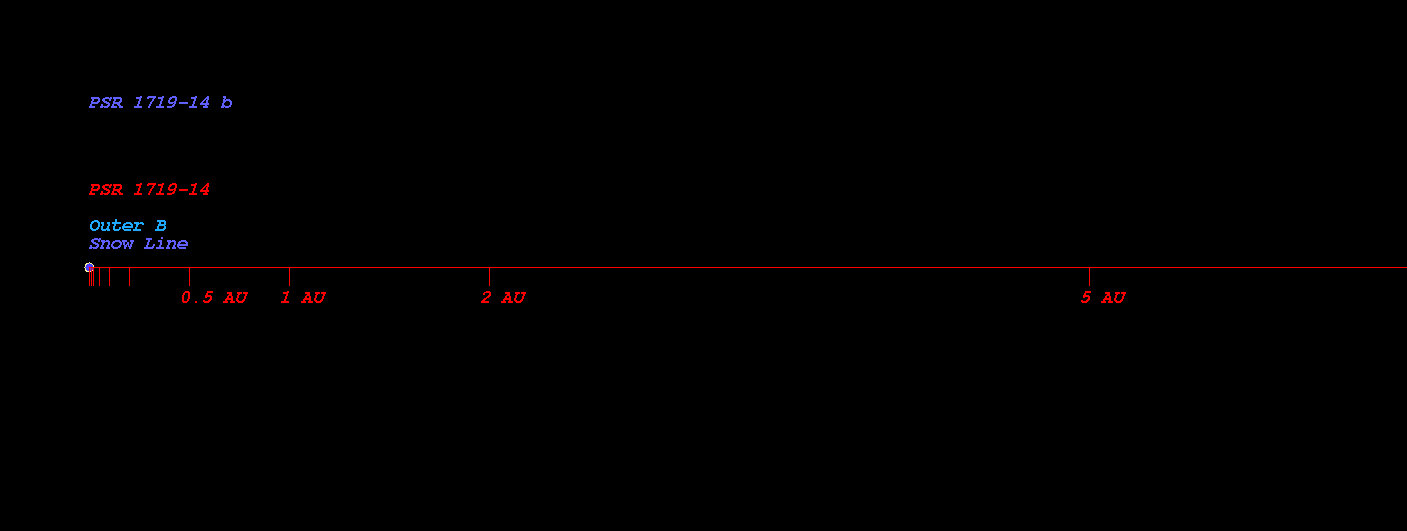

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star PSR 1719-14)



  • Kopparapu Recent Venus for Star PSR 1719-14 distance : 0.762 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star PSR 1719-14 distance : 0.965 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star PSR 1719-14 distance : 0.932 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star PSR 1719-14 distance : 1.022 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star PSR 1719-14 distance : 1.718 AU
  • Kopparapu Outer Boundary for Early Mars for Star PSR 1719-14 distance : 1.812 AU

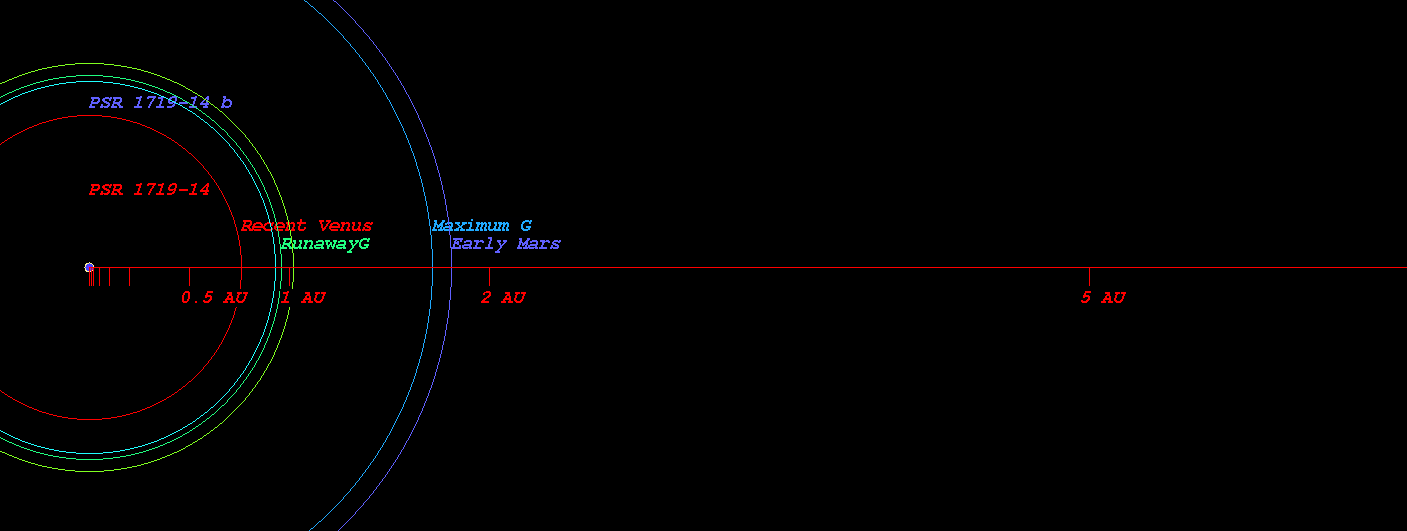

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star PSR 1719-14)



  • Original Kopparapu Recent Venus for Star PSR 1719-14 distance : 0.759 AU
  • Original Kopparapu Runaway Greenhouse for Star PSR 1719-14 distance : 0.992 AU
  • Original Kopparapu Moist Greenhouse for Star PSR 1719-14 distance : 1.004 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star PSR 1719-14 distance : 1.747 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star PSR 1719-14 distance : 1.817 AU

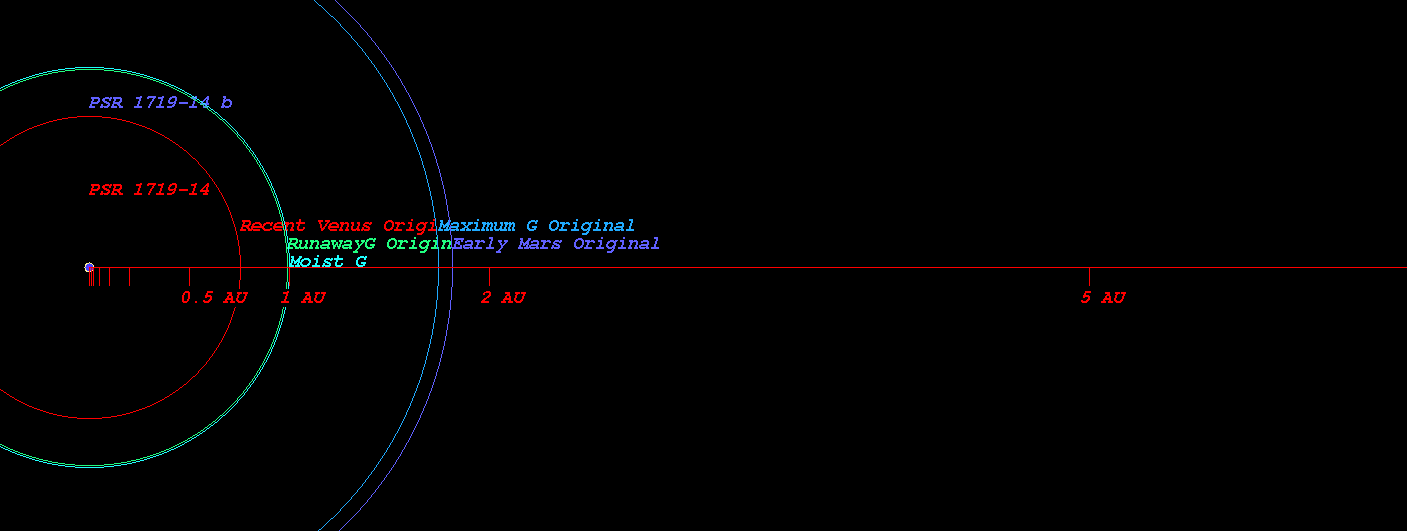

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star PSR 1719-14)

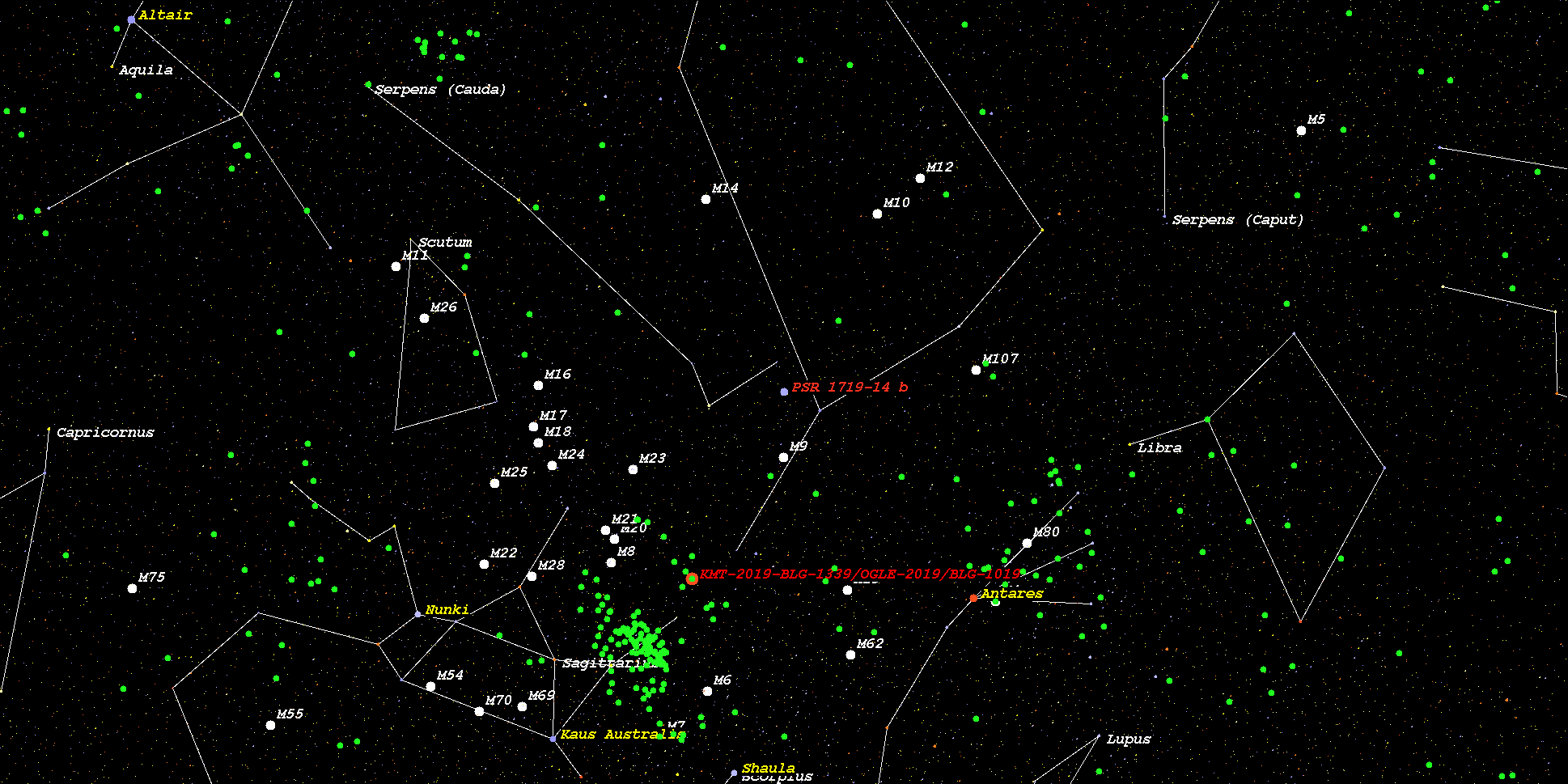

    (Position in Stellar Map of star PSR 1719-14 and its Exoplanet PSR 1719-14 b)



    (Zoomed position in Stellar Map of star PSR 1719-14 and its Exoplanet PSR 1719-14 b (zoom level 3))

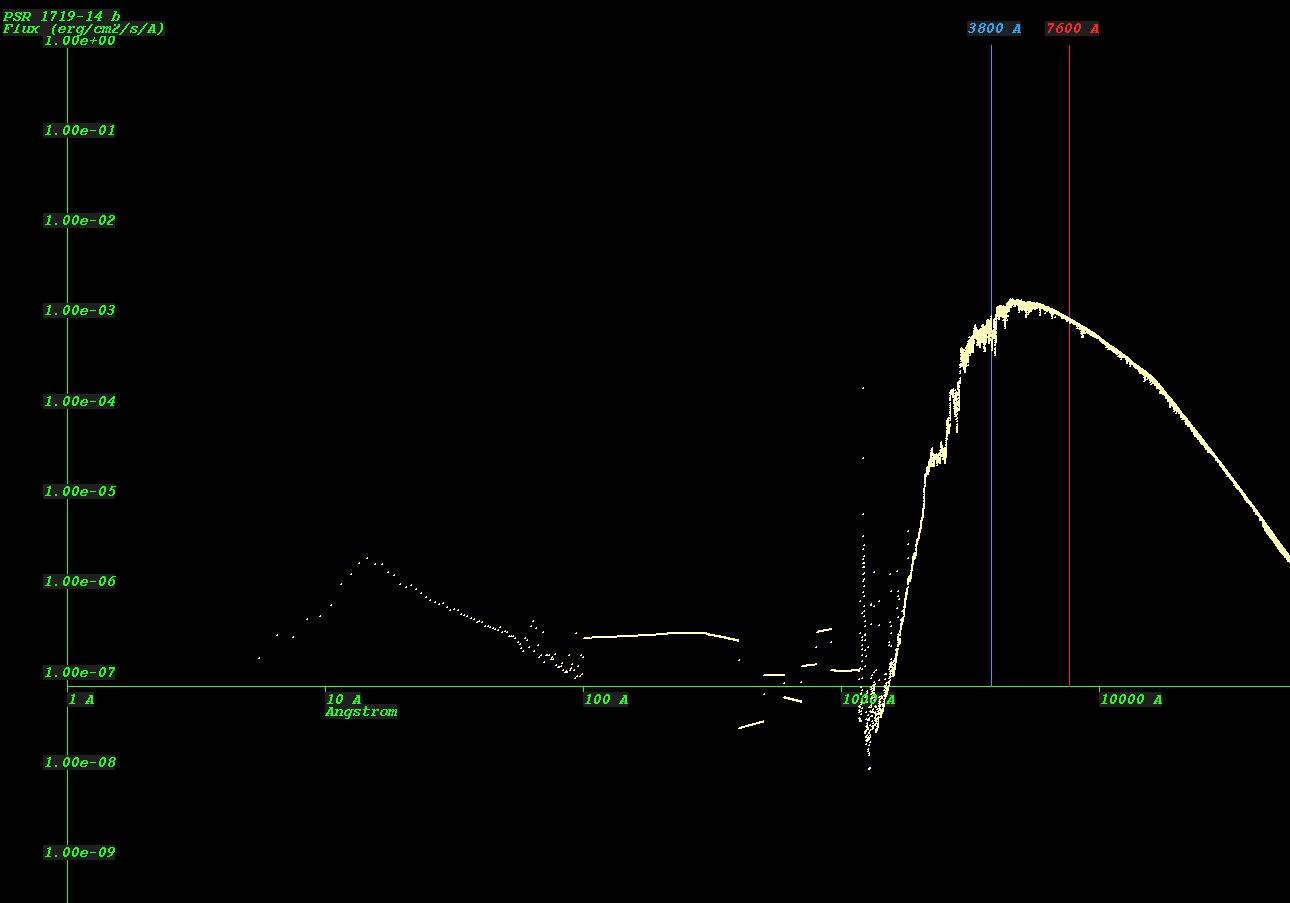

    (Synthetic Spectrum of star PSR 1719-14*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
