Imaginary Picture of TRAPPIST-1 f

Display orbital revolution of TRAPPIST-1 f around the hoststar TRAPPIST-1
/
Exoplanet Name : TRAPPIST-1 f
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 0.0932 (Rjup) 1.0450 (Rearth)
Mass (Mjup / Me): 0.0021 (Mjup) 0.6677 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0371 (AU) 0.0371 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0252
Orbital Period(Observed/Estimated) 9.21 (Days Obs.) 9.23 (Days Est.)
Surface Gravity (G Earth) 0.6114
Star Radiation at Atmospheric Boundary: 523.8 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 213.5 (K)
Blackbody T 0.3(K) 200.5 (K)
Blackbody T 0.7(K) 162.2 (K)
Tidally Locked Blackbody T 0.1(K) 253.9 (K)
Tidally Locked Blackbody T 0.3(K) 238.5 (K)
Size Class: Earth-size
Mass Class:
Detection Type : Primary Transit
Mass Detection : TTV
Radius Detection : Primary Transit
Habitability by Solar Eq. Astronomical Unit: Habitable
Habitability by Kopparapu: Habitable
Star Name : TRAPPIST-1
Alternate Name : 2MASS J23062928-0502285
Star Distance(LY) : 39.5
Stellar Radius(Rsun) : 0.1 (Rsun Measured)
Stellar Mass(Msun) : 0.1 (Msun Measured) 0.1 (Msun Estimated)
Star Age : 7.6 (GY)
Temperature : 2560 (K)
Spectral type : M8
UV portion[%]: 0.5
Visible portion[%]: 1.5
IR portion[%]: 98.1
Metalicity : 0.0
Absolute Magnitude: 18.4
Apparent Magnitude: 18.8
Right Ascension(RA) 346.6223
Declination (DEC) -5.0414
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=TRAPPIST-1&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/TRAPPIST-1%20b/
TRAPPIST-1 f
TRAPPIST-1 f

  • TRAPPIST-1 f is an exoplanet orbiting the star TRAPPIST-1, located about 39.5 light-years (12.1 pc) away from Solar System. Its discovery was publicly announced on 2017.
  • The host star TRAPPIST-1 has apparent magnitude of 18.8, with absolute magnitude of 18.4.
  • It is 0.1 times more massive and 0.1 times bigger compared with our Sun. The surface temperature is 2560 with its spectral types of M8
  • In this planetary system, the extrasolar planet TRAPPIST-1 f orbits around the star TRAPPIST-1 every 9.2 days with its orbital distance of 0.04 AU ( 5550081.0 km)

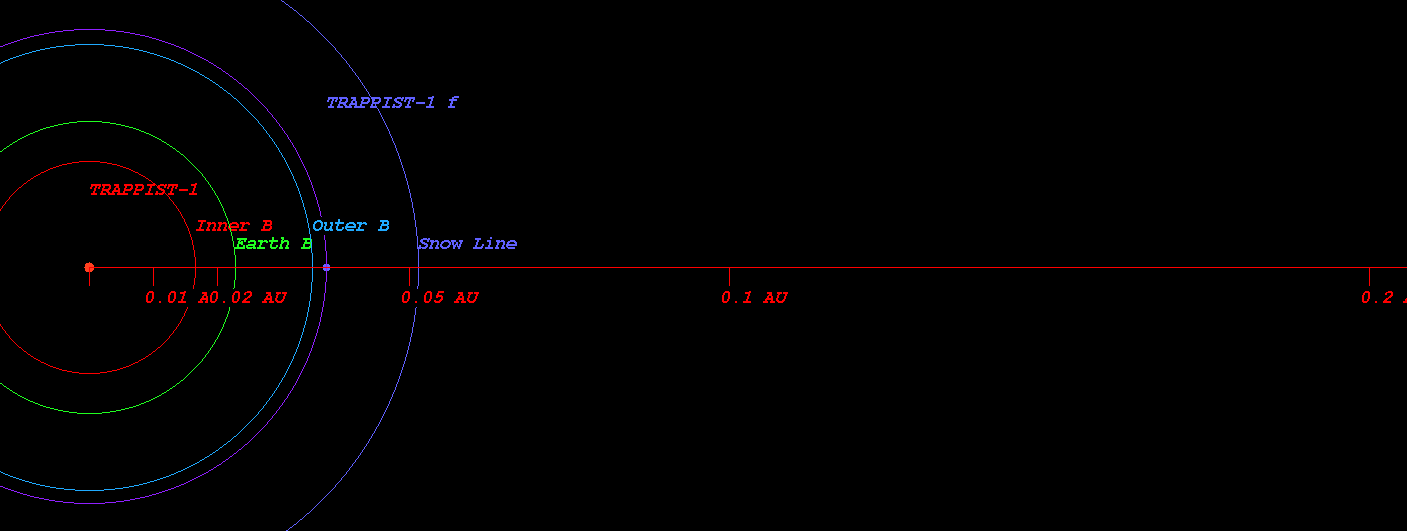

  • (Projected orbit of TRAPPIST-1 f around its host star TRAPPIST-1)


  • The Star TRAPPIST-1 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.017 AU ( 2484985.8 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.023 AU ( 3434899.7 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.035 AU ( 5234027.0 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 0.051 AU ( 7702100.1 km)
  • Radiation at Planetary Boundary of TRAPPIST-1 f : 523.83 W/m2

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star TRAPPIST-1)



  • Kopparapu Recent Venus for Star TRAPPIST-1 distance : 0.019 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star TRAPPIST-1 distance : 0.024 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star TRAPPIST-1 distance : 0.023 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star TRAPPIST-1 distance : 0.026 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star TRAPPIST-1 distance : 0.049 AU
  • Kopparapu Outer Boundary for Early Mars for Star TRAPPIST-1 distance : 0.051 AU

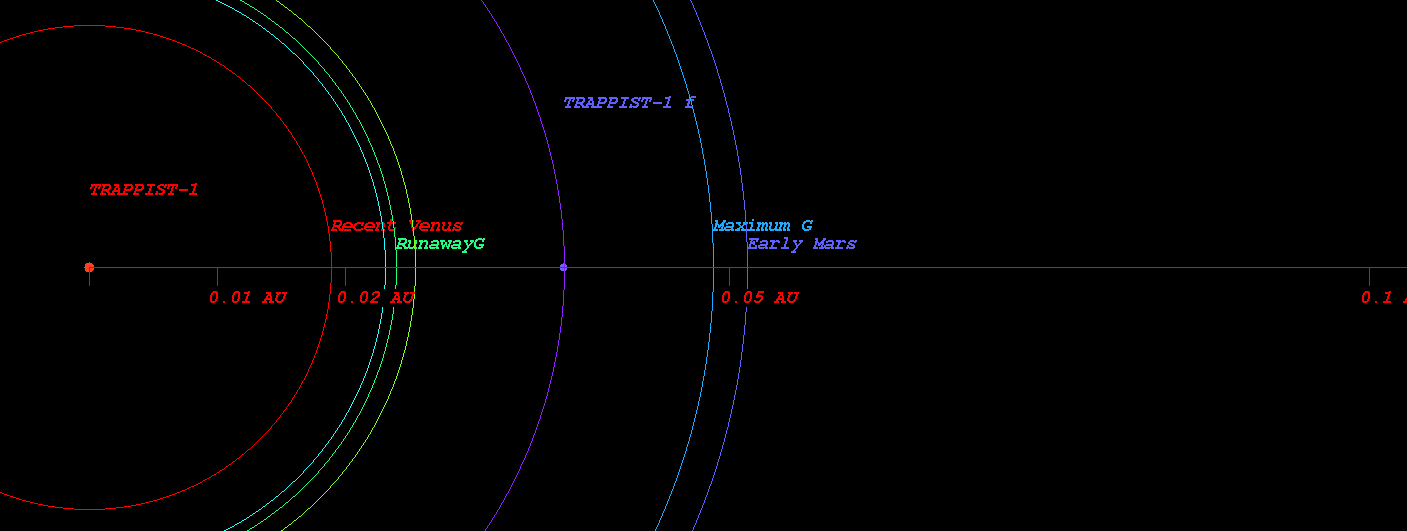

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star TRAPPIST-1)



  • Original Kopparapu Recent Venus for Star TRAPPIST-1 distance : 0.019 AU
  • Original Kopparapu Runaway Greenhouse for Star TRAPPIST-1 distance : 0.025 AU
  • Original Kopparapu Moist Greenhouse for Star TRAPPIST-1 distance : 0.025 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star TRAPPIST-1 distance : 0.050 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star TRAPPIST-1 distance : 0.052 AU

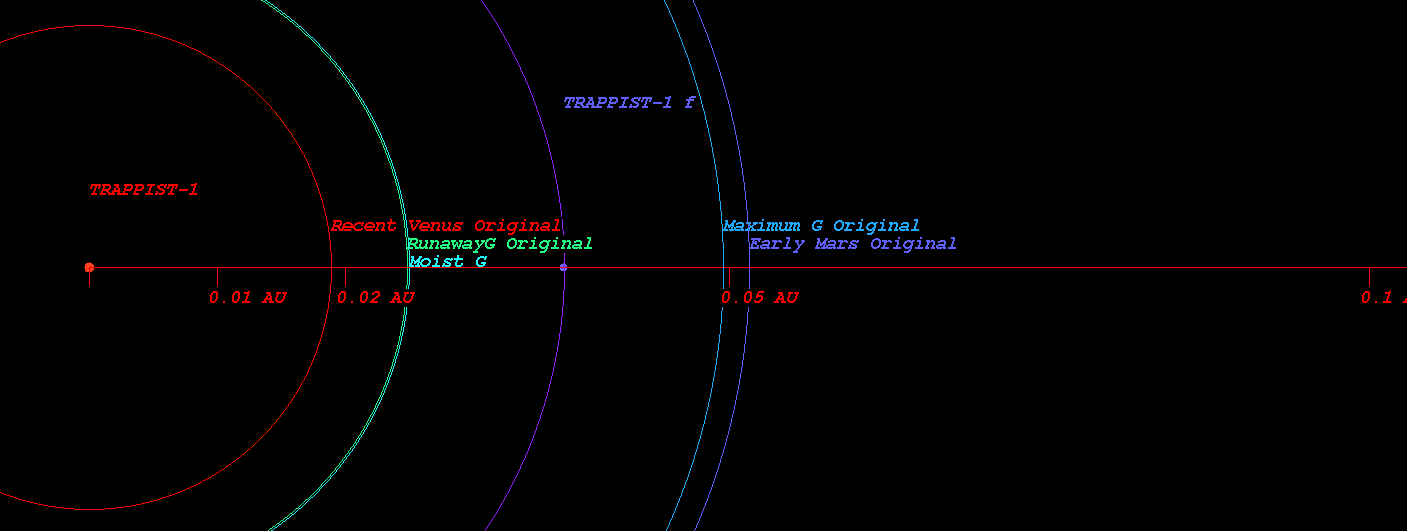

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star TRAPPIST-1)



    (Position in Stellar Map of star TRAPPIST-1 and its Exoplanet TRAPPIST-1 f)



    (Zoomed position in Stellar Map of star TRAPPIST-1 and its Exoplanet TRAPPIST-1 f (zoom level 3))

    (Synthetic Spectrum of star TRAPPIST-1*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
