Exoplanet Name : |
TrES-5 b |
|
Alternate Name : |
TrES-5 |
|
Status : |
Confirmed |
|
Radius (Rjup / Re): |
1.2090 |
(Rjup) |
13.5517 |
(Rearth) |
|
Mass (Mjup / Me): |
1.7780 |
(Mjup) |
565.2938 |
(Mearth) |
|
Semi Major Axis / Orbital Distance Calculated |
0.0245 |
(AU) |
0.0245 |
(AU Est.) |
|
Eccentricity : |
0.0000 |
|
Orbital Period(Yrs) |
0.0041 |
|
Orbital Period(Observed/Estimated) |
1.48 |
(Days Obs.) |
1.48 |
(Days Est.) |
|
Surface Gravity (G Earth) |
3.0781 |
|
Star Radiation at Atmospheric Boundary: |
1099071.2 |
(W/m2) |
|
Measured Temperature (K) |
0.0 |
(K) |
|
Blackbody T 0.1(K) |
1445.1 |
(K) |
|
Blackbody T 0.3(K) |
1357.1 |
(K) |
|
Blackbody T 0.7(K) |
1098.0 |
(K) |
|
Tidally Locked Blackbody T 0.1(K) |
1718.5 |
(K) |
|
Tidally Locked Blackbody T 0.3(K) |
1613.9 |
(K) |
|
Size Class: |
Jupiter-size |
|
Mass Class: |
|
|
Detection Type : |
Primary Transit |
|
Mass Detection : |
|
|
Radius Detection : |
|
|
Habitability by Solar Eq. Astronomical Unit: |
Not habitable |
|
Habitability by Kopparapu: |
Not habitable |
|
Star Name : |
TrES-5 |
|
Alternate Name : |
|
|
Star Distance(LY) : |
1174.2 |
|
Stellar Radius(Rsun) : |
0.9 |
(Rsun Measured) |
|
Stellar Mass(Msun) : |
0.9 |
(Msun Measured) |
0.9 |
(Msun Estimated) |
|
Star Age : |
7.4 |
(GY) |
|
Temperature : |
5171 |
(K) |
|
Spectral type : |
K1 |
|
UV portion[%]: |
4.7 |
|
Visible portion[%]: |
39.7 |
|
IR portion[%]: |
55.6 |
|
Metalicity : |
0.2 |
|
Absolute Magnitude: |
5.9 |
|
Apparent Magnitude: |
13.7 |
|
Right Ascension(RA) |
305.2219 |
|
Declination (DEC) |
59.4492 |
|
Hubble Space Telescope Guide Star Catalog (GSC) ID |
|
|
Discovered by |
|
|
Discovery Paper - Authors |
|
|
Discovery Paper - Title |
|
|
Discovery Paper - Journal |
|
|
Discovery Paper - URL |
|
|
SIMBAD LINK |
http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=TrES-4+&submit=SIMBAD+search |
|
Open Exoplanet Database Link |
|
 |
 |
 |
 |
/
TrES-5 b
TrES-5 b
TrES-5 b is an exoplanet orbiting the star TrES-5, located about 1174.2 light-years (360.0 pc) away from Solar System. Its discovery was publicly announced on 2011.

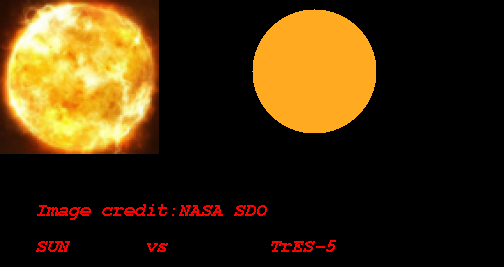

The host star TrES-5 has apparent magnitude of 13.7, with absolute magnitude of 5.9. It is 0.9 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 5171 with its spectral types of K1
In this planetary system, the extrasolar planet TrES-5 b orbits around the star TrES-5 every 1.5 days with its orbital distance of 0.02 AU ( 3659163.9 km)

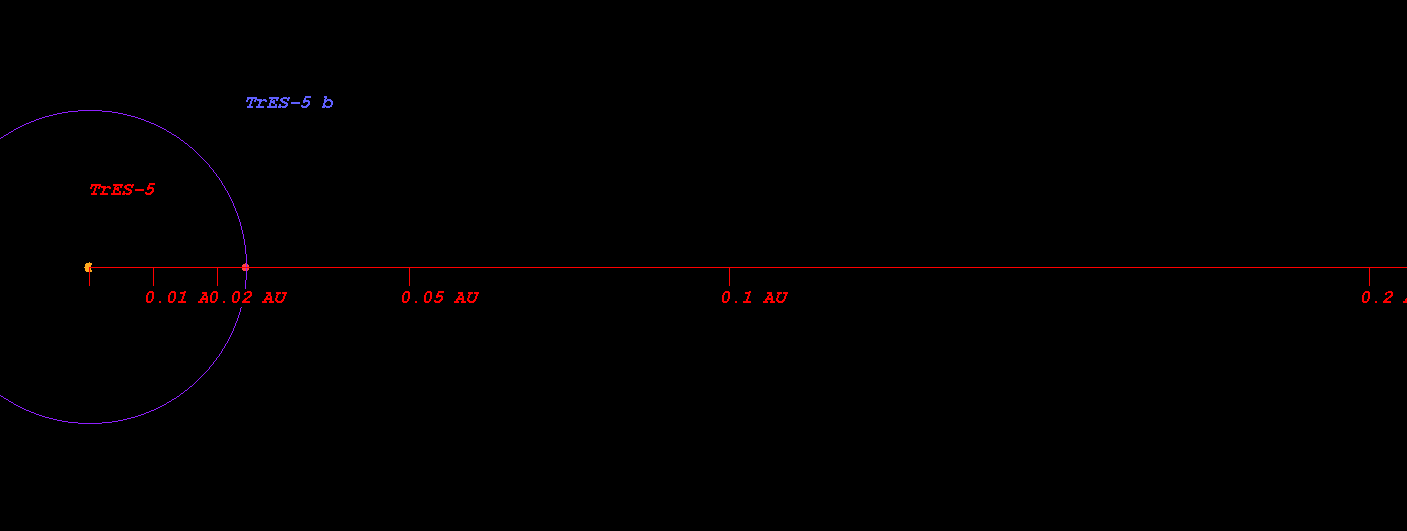

(Projected orbit of TrES-5 b around its host star TrES-5)
The Star TrES-5 's habitable zone is located at the following distance
Inner Boundary (the orbital distance at Venus's Equivalent Radiation )
: 0.502 AU ( 75045573.4 km)
Earth Boundary (the orbital distance at Earth's Equivalent Radiation)
: 0.693 AU ( 103732594.1 km)
Outer Boundary (the orbital distance at Mars's Equivalent Radiation)
: 1.057 AU ( 158065517.5 km)
Snow Line (the orbital distance at Snow Line Equivalent Radiation)
: 1.555 AU ( 232600333.4 km)
Radiation at Planetary Boundary of TrES-5 b : 1099071.23 W/m2

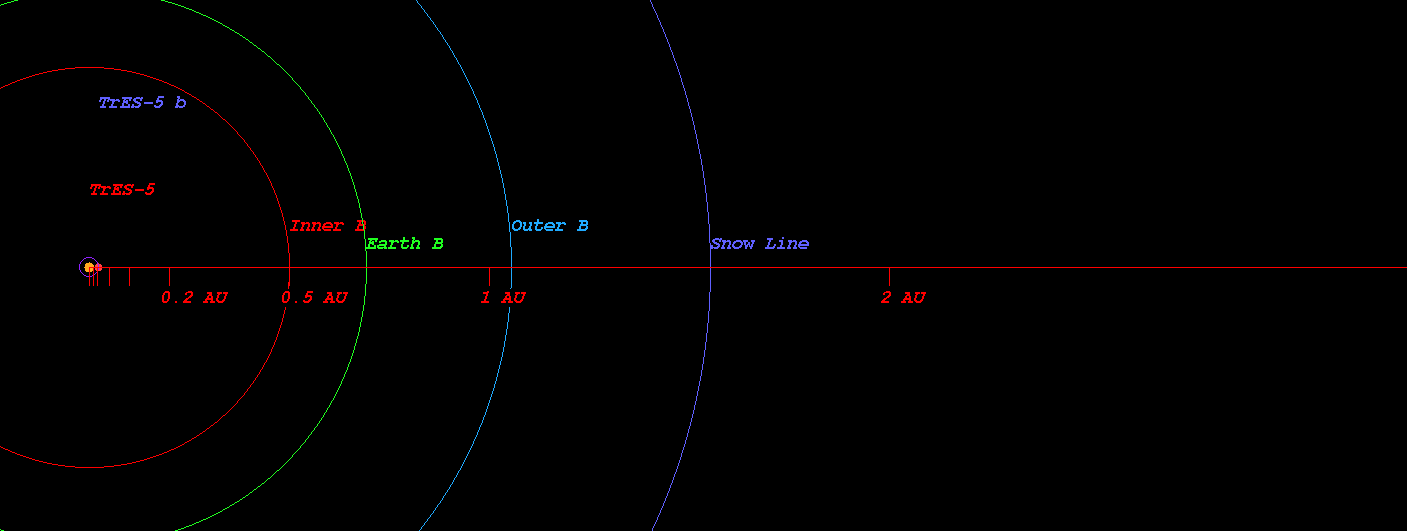

(Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star TrES-5)
Kopparapu Recent Venus for Star TrES-5 distance : 0.538 AU
Kopparapu Runaway Greenhouse for Earth-sized planet for Star TrES-5 distance : 0.681 AU
Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star TrES-5 distance : 0.658 AU
Kopparapu Runaway Greenhouse for Mars-sized planet for Star TrES-5 distance : 0.722 AU
Kopparapu Outer Boundary for Maximum Greenhouse for Star TrES-5 distance : 1.227 AU
Kopparapu Outer Boundary for Early Mars for Star TrES-5 distance : 1.294 AU

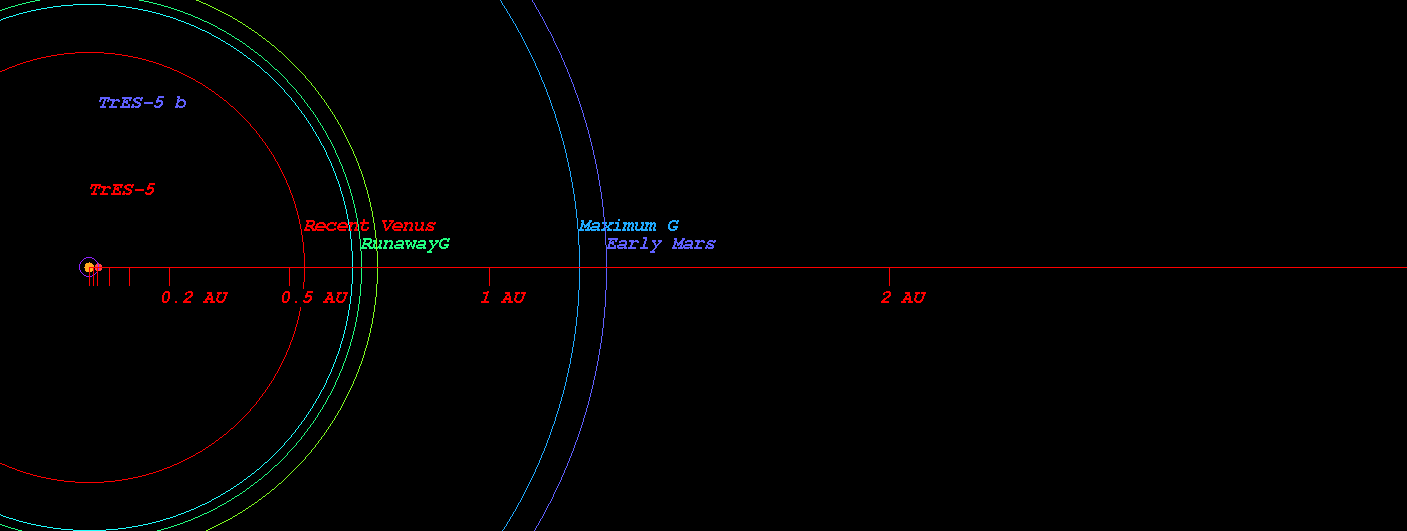

(Habitable zone calculated based on Kopparapu et al.(2013) around the star TrES-5)
Original Kopparapu Recent Venus for Star TrES-5 distance : 0.533 AU
Original Kopparapu Runaway Greenhouse for Star TrES-5 distance : 0.702 AU
Original Kopparapu Moist Greenhouse for Star TrES-5 distance : 0.706 AU
Original Kopparapu Outer Boundary for Maximum Greenhouse for Star TrES-5 distance : 1.248 AU
Original Kopparapu Outer Boundary for Early Mars for Star TrES-5 distance : 1.297 AU

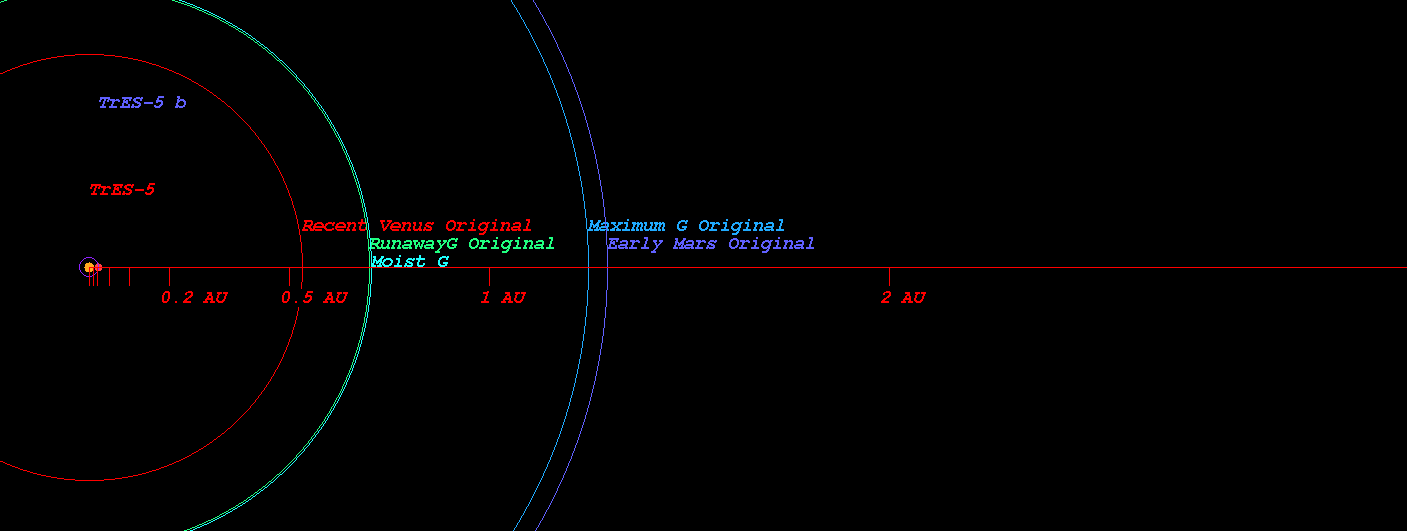

(Habitable zone calculated based on Kopparapu et al.(Original) around the star TrES-5)

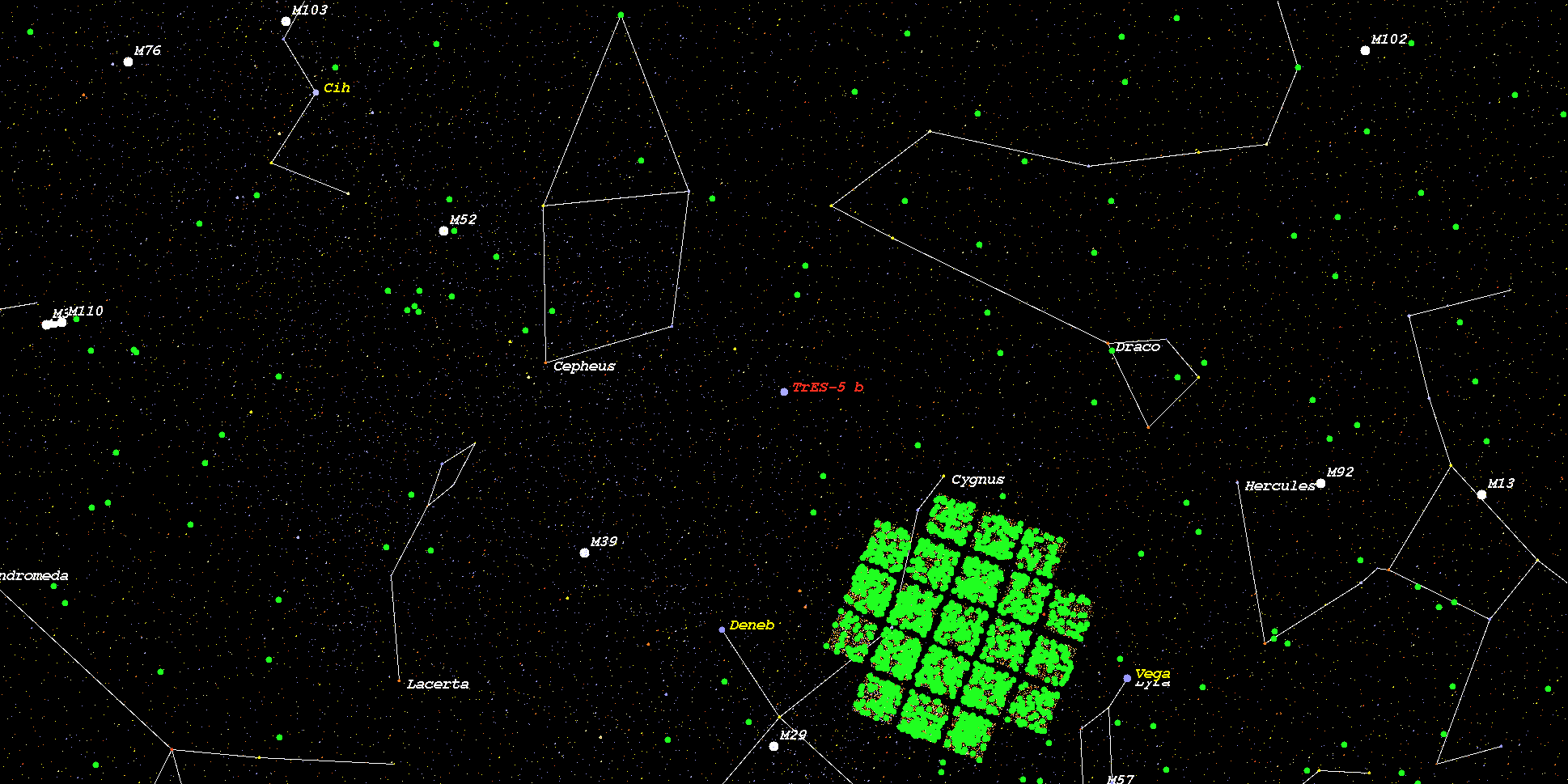

(Position in Stellar Map of star TrES-5 and its Exoplanet TrES-5 b)
(Zoomed position in Stellar Map of star TrES-5 and its Exoplanet TrES-5 b (zoom level 3))

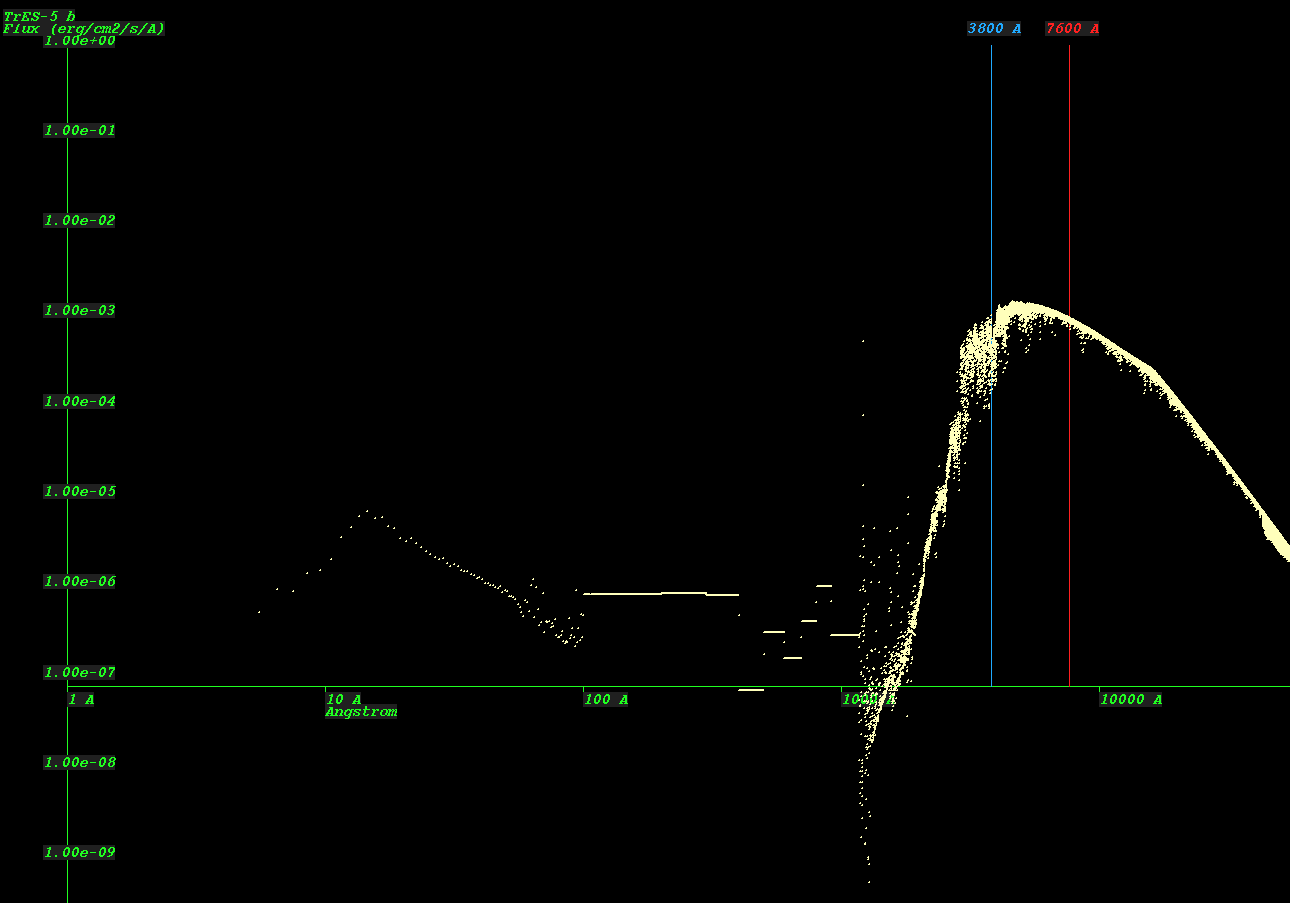

(Synthetic Spectrum of star TrES-5*)
*Yamashiki YA et al. 2019 ApJ 881 114
MUSCLES Paper I - France et al. 2016 ApJ 820 89
MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
