Imaginary Picture of WASP-114 b

Display orbital revolution of WASP-114 b around the hoststar WASP-114
/
Exoplanet Name : WASP-114 b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 1.3390 (Rjup) 15.0089 (Rearth)
Mass (Mjup / Me): 1.7690 (Mjup) 562.4323 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0285 (AU) 0.0285 (AU Est.)
Eccentricity : 0.0120
Orbital Period(Yrs) 0.0042
Orbital Period(Observed/Estimated) 1.55 (Days Obs.) 1.55 (Days Est.)
Surface Gravity (G Earth) 2.4968
Star Radiation at Atmospheric Boundary: 3840857.8 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1975.8 (K)
Blackbody T 0.3(K) 1855.5 (K)
Blackbody T 0.7(K) 1501.3 (K)
Tidally Locked Blackbody T 0.1(K) 2349.7 (K)
Tidally Locked Blackbody T 0.3(K) 2206.6 (K)
Size Class: Super-Jupiter-size
Mass Class:
Detection Type : Primary Transit
Mass Detection : Radial Velocity
Radius Detection : Primary Transit
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : WASP-114
Alternate Name :
Star Distance(LY) : 1500.3
Stellar Radius(Rsun) : 1.4 (Rsun Measured)
Stellar Mass(Msun) : 1.3 (Msun Measured) 1.3 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5940 (K)
Spectral type : G0
UV portion[%]: 0.3
Visible portion[%]: 1.5
IR portion[%]: 98.2
Metalicity : 0.1
Absolute Magnitude: 4.4
Apparent Magnitude: 12.7
Right Ascension(RA) 327.6656
Declination (DEC) 10.4631
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors
Discovery Paper - Title
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=WASP-114+&submit=SIMBAD+search
Open Exoplanet Database Link
WASP-114 b
WASP-114 b

  • WASP-114 b is an exoplanet orbiting the star WASP-114, located about 1500.3 light-years (460.0 pc) away from Solar System. Its discovery was publicly announced on 2016.
  • The host star WASP-114 has apparent magnitude of 12.7, with absolute magnitude of 4.4.
  • It is 1.3 times more massive and 1.4 times bigger compared with our Sun. The surface temperature is 5940 with its spectral types of G0
  • In this planetary system, the extrasolar planet WASP-114 b orbits around the star WASP-114 every 1.5 days with its orbital distance of 0.03 AU ( 4265035.3 km)
  • (Projected orbit of WASP-114 b around its host star WASP-114)


  • The Star WASP-114 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 1.093 AU ( 163518554.7 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 1.511 AU ( 226025375.1 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 2.302 AU ( 344412652.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 3.388 AU ( 506818305.7 km)
  • Radiation at Planetary Boundary of WASP-114 b : 3840857.82 W/m2

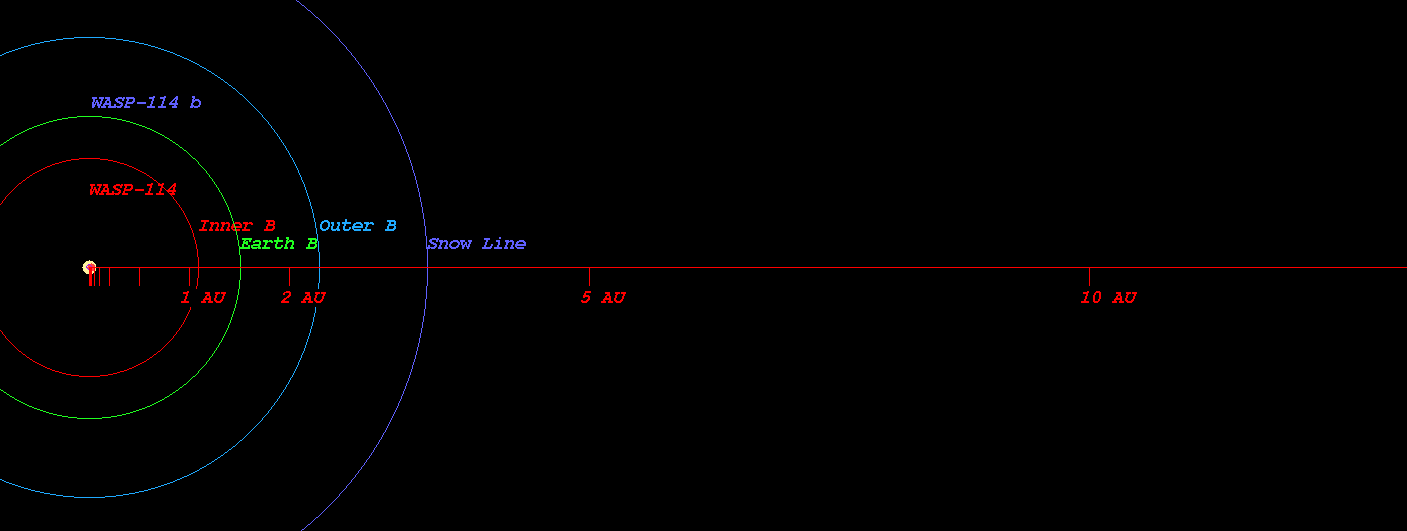

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star WASP-114)



  • Kopparapu Recent Venus for Star WASP-114 distance : 1.122 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star WASP-114 distance : 1.421 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star WASP-114 distance : 1.372 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star WASP-114 distance : 1.504 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star WASP-114 distance : 2.498 AU
  • Kopparapu Outer Boundary for Early Mars for Star WASP-114 distance : 2.635 AU

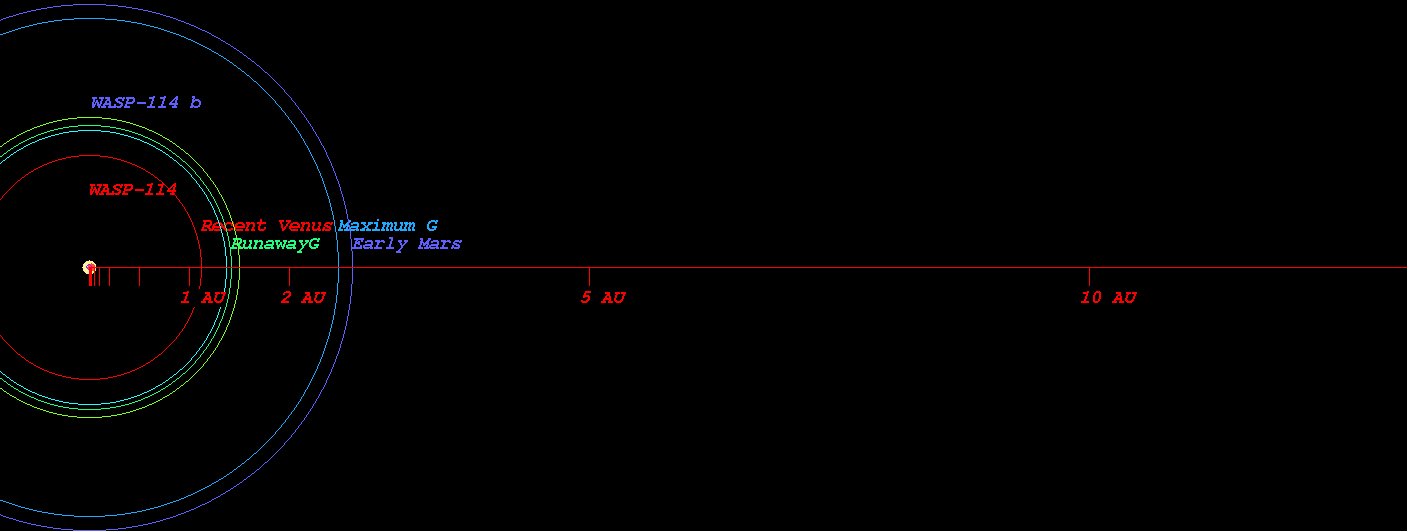

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star WASP-114)



  • Original Kopparapu Recent Venus for Star WASP-114 distance : 1.127 AU
  • Original Kopparapu Runaway Greenhouse for Star WASP-114 distance : 1.459 AU
  • Original Kopparapu Moist Greenhouse for Star WASP-114 distance : 1.491 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star WASP-114 distance : 2.543 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star WASP-114 distance : 2.644 AU

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star WASP-114)



    (Position in Stellar Map of star WASP-114 and its Exoplanet WASP-114 b)



    (Zoomed position in Stellar Map of star WASP-114 and its Exoplanet WASP-114 b (zoom level 3))

    (Synthetic Spectrum of star WASP-114*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
