Imaginary Picture of WASP-135 b

Display orbital revolution of WASP-135 b around the hoststar WASP-135
/
Exoplanet Name : WASP-135 b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 1.3000 (Rjup) 14.5717 (Rearth)
Mass (Mjup / Me): 1.9000 (Mjup) 604.0822 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0243 (AU) 0.0243 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0038
Orbital Period(Observed/Estimated) 1.40 (Days Obs.) 1.40 (Days Est.)
Surface Gravity (G Earth) 2.8450
Star Radiation at Atmospheric Boundary: 1992177.7 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1676.8 (K)
Blackbody T 0.3(K) 1574.7 (K)
Blackbody T 0.7(K) 1274.1 (K)
Tidally Locked Blackbody T 0.1(K) 1994.0 (K)
Tidally Locked Blackbody T 0.3(K) 1872.6 (K)
Size Class: Super-Jupiter-size
Mass Class:
Detection Type : Primary Transit
Mass Detection : Radial Velocity
Radius Detection : Primary Transit
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : WASP-135
Alternate Name :
Star Distance(LY) : 978.5
Stellar Radius(Rsun) : 1.0 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 4.4 (GY)
Temperature : 5680 (K)
Spectral type : G5
UV portion[%]: 7.5
Visible portion[%]: 44.3
IR portion[%]: 48.1
Metalicity : 0.0
Absolute Magnitude: 5.9
Apparent Magnitude: 13.3
Right Ascension(RA) 267.2833
Declination (DEC) 29.8792
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "Jessica J. Spake, David J. A. Brown, Amanda P. Doyle, Guillaume H_brard, James McCormac, David J. Armstrong, Don Pollacco, Yilen G_mez Maqueo Chew, David R. Anderson, Susana C. C. Barros, Fran_ois Bouchy, Panayotis Boumis, Giovanni Bruno, Andrew Collier Cameron, Bastien Courcol, Guy R. Davies, Francesca Faedi, Coel Hellier, James Kirk, Kristine W. F. Lam, Alexios Liakos, Tom Louden, Pierre F. L. Maxted, Hugh P. Osborn, Enric Palle, Jorge Prieto Arranz, St_phane Udry, Simon R. Walker, Richard G. West, Peter J. Wheatley"
Discovery Paper - Title "WASP-135b: a highly irradiated, inflated hot Jupiter orbiting a G5V star"
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=WASP-135+&submit=SIMBAD+search
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/WASP-135%20b/
WASP-135 b
WASP-135 b

  • WASP-135 b is an exoplanet orbiting the star WASP-135, located about 978.5 light-years (300.0 pc) away from Solar System. Its discovery was publicly announced on 2015.
  • The host star WASP-135 has apparent magnitude of 13.3, with absolute magnitude of 5.9.
  • It is 1.0 times more massive and 1.0 times bigger compared with our Sun. The surface temperature is 5680 with its spectral types of G5
  • In this planetary system, the extrasolar planet WASP-135 b orbits around the star WASP-135 every 1.4 days with its orbital distance of 0.02 AU ( 3635228.3 km)

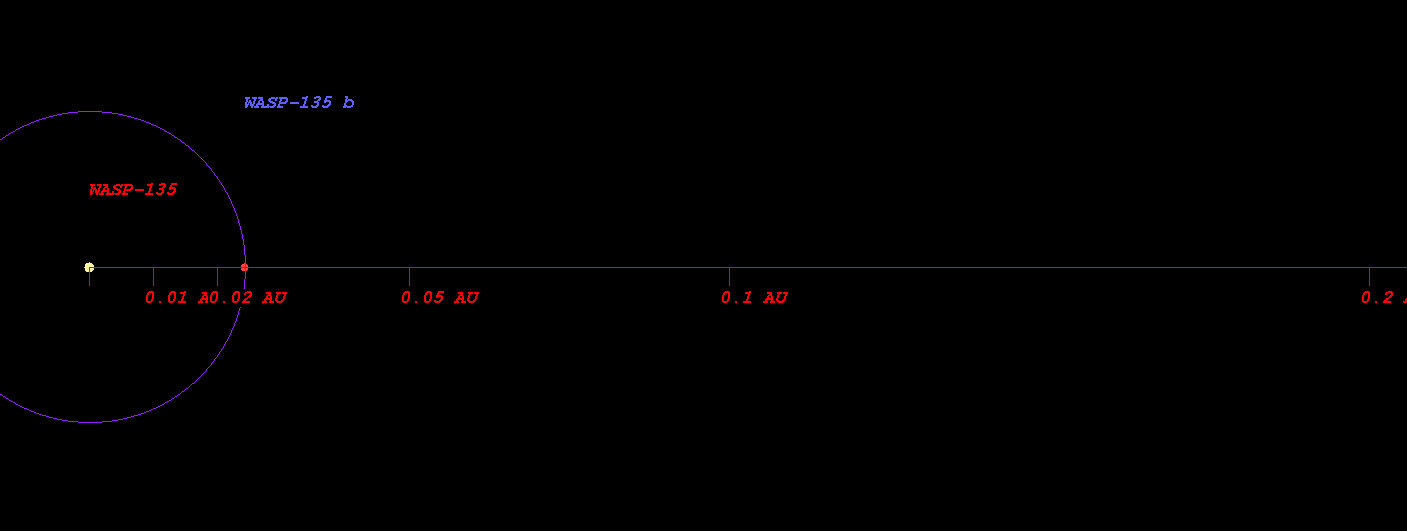

  • (Projected orbit of WASP-135 b around its host star WASP-135)


  • The Star WASP-135 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.671 AU ( 100375106.0 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.927 AU ( 138744627.6 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.413 AU ( 211416108.4 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 2.080 AU ( 311108065.1 km)
  • Radiation at Planetary Boundary of WASP-135 b : 1992177.69 W/m2

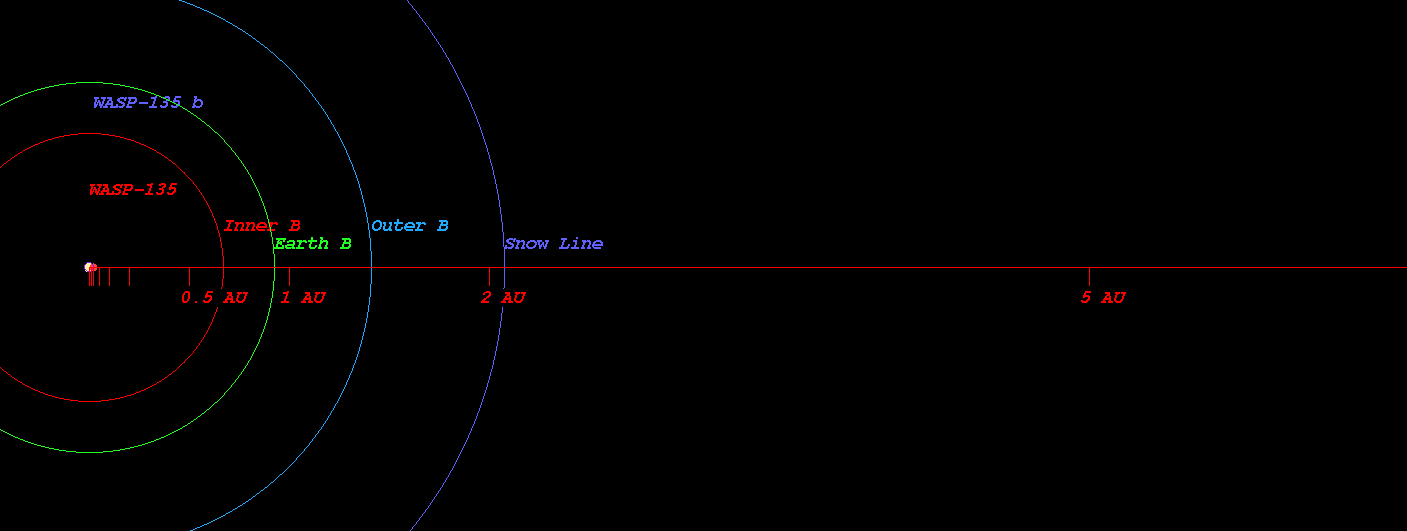

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star WASP-135)



  • Kopparapu Recent Venus for Star WASP-135 distance : 0.700 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star WASP-135 distance : 0.886 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star WASP-135 distance : 0.856 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star WASP-135 distance : 0.938 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star WASP-135 distance : 1.568 AU
  • Kopparapu Outer Boundary for Early Mars for Star WASP-135 distance : 1.654 AU

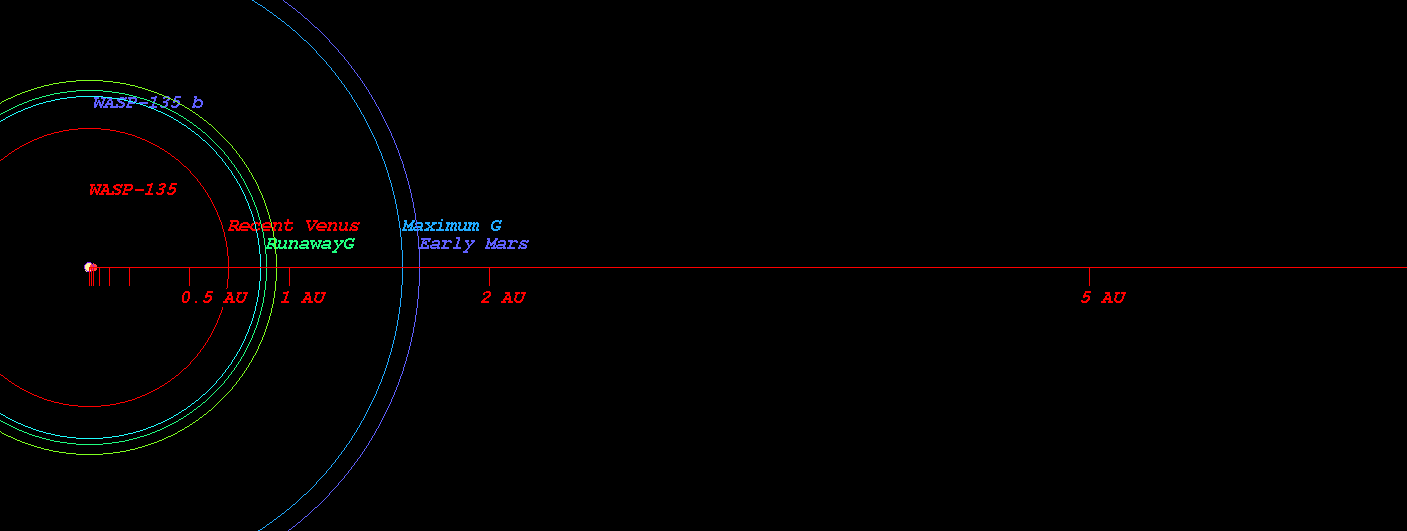

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star WASP-135)



  • Original Kopparapu Recent Venus for Star WASP-135 distance : 0.699 AU
  • Original Kopparapu Runaway Greenhouse for Star WASP-135 distance : 0.911 AU
  • Original Kopparapu Moist Greenhouse for Star WASP-135 distance : 0.925 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star WASP-135 distance : 1.596 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star WASP-135 distance : 1.660 AU

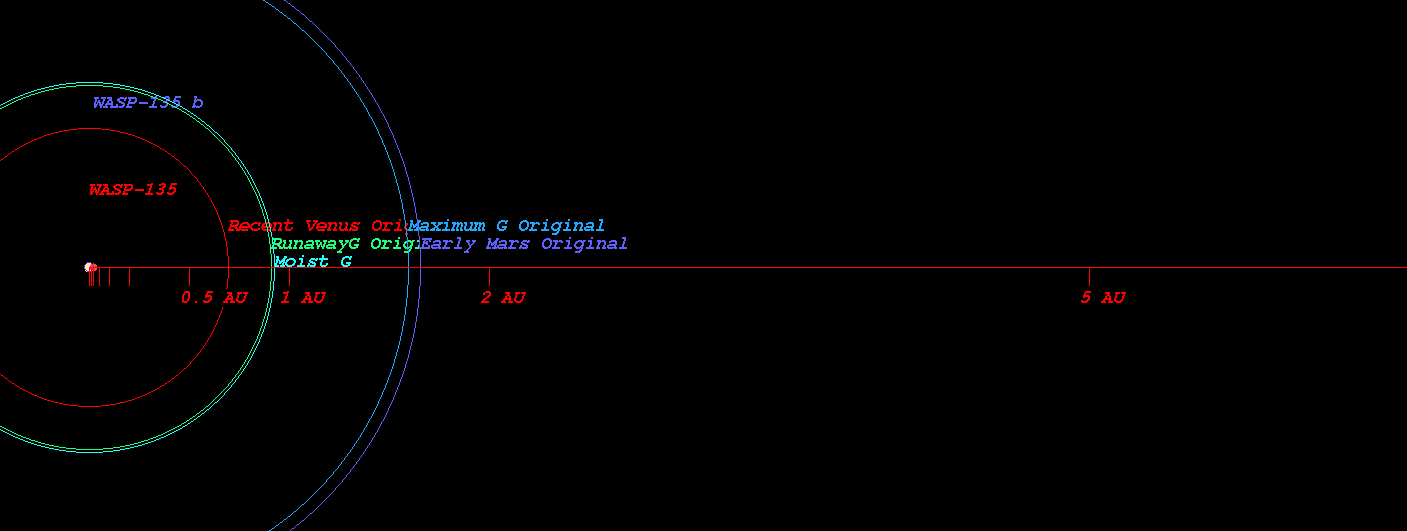

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star WASP-135)

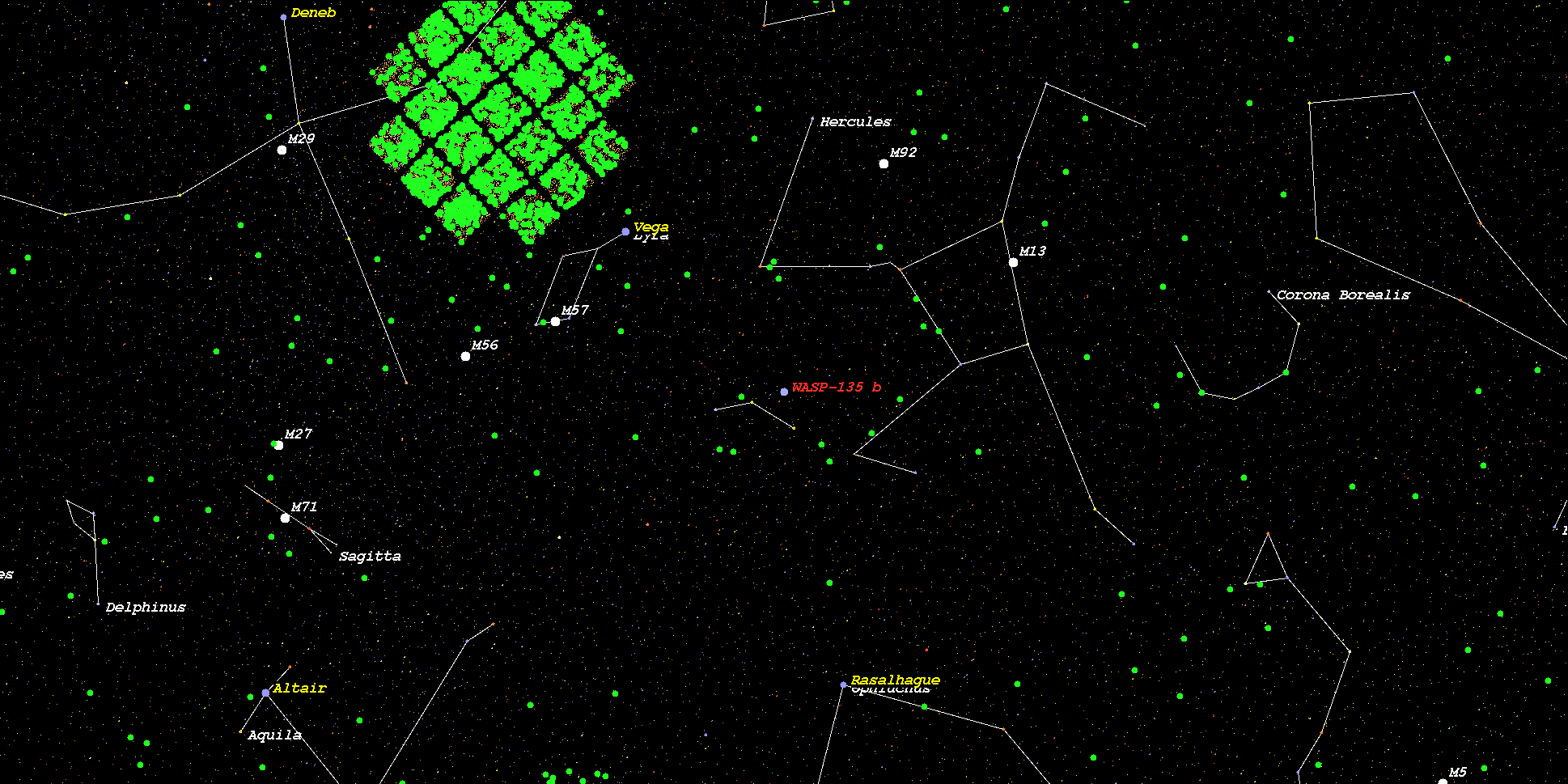

    (Position in Stellar Map of star WASP-135 and its Exoplanet WASP-135 b)



    (Zoomed position in Stellar Map of star WASP-135 and its Exoplanet WASP-135 b (zoom level 3))

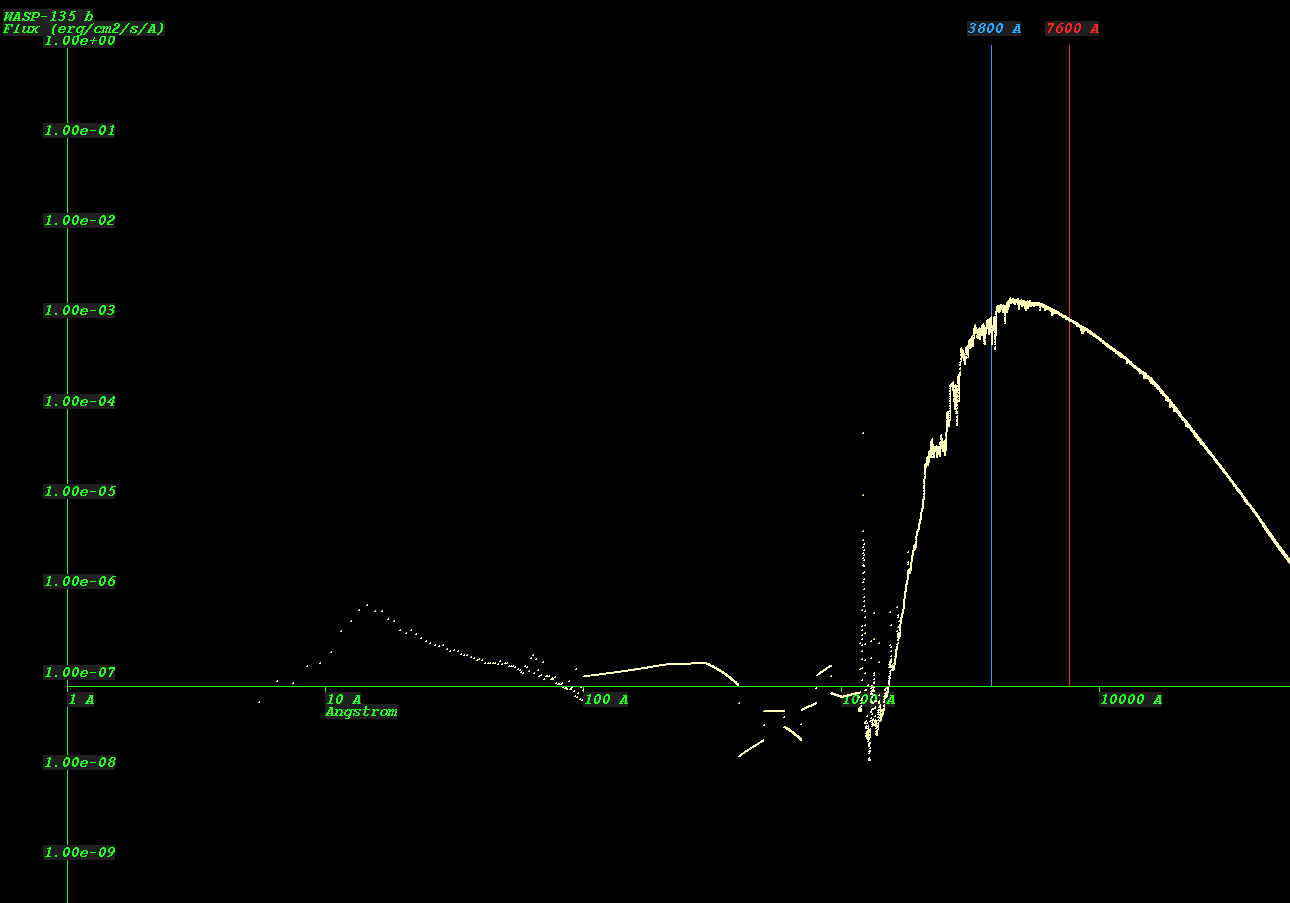

    (Synthetic Spectrum of star WASP-135*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
