Imaginary Picture of WASP-49 A b

Display orbital revolution of WASP-49 A b around the hoststar WASP-49 A
/
Exoplanet Name : WASP-49 A b
Alternate Name : WASP-49
Status : Confirmed
Radius (Rjup / Re): 1.1150 (Rjup) 12.4980 (Rearth)
Mass (Mjup / Me): 0.3780 (Mjup) 120.1806 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0378 (AU) 0.0378 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 0.0076
Orbital Period(Observed/Estimated) 2.78 (Days Obs.) 2.58 (Days Est.)
Surface Gravity (G Earth) 0.7694
Star Radiation at Atmospheric Boundary: 19132.0 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 524.9 (K)
Blackbody T 0.3(K) 492.9 (K)
Blackbody T 0.7(K) 398.8 (K)
Tidally Locked Blackbody T 0.1(K) 624.2 (K)
Tidally Locked Blackbody T 0.3(K) 586.2 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : Primary Transit
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : WASP-49 A
Alternate Name : WASP-49
Star Distance(LY) : 637.0
Stellar Radius(Rsun) : 0.4 (Rsun Estimated)
Stellar Mass(Msun) : 1.1 (Msun Measured) 0.9 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 3300 (K)
Spectral type : M9
UV portion[%]: 0.2
Visible portion[%]: 11.2
IR portion[%]: 88.6
Metalicity : 0.0
Absolute Magnitude: 15.5
Apparent Magnitude: 22.0
Right Ascension(RA) 91.0894
Declination (DEC) -16.9653
Hubble Space Telescope Guide Star Catalog (GSC) ID 00032-00111
Discovered by
Discovery Paper - Authors
Discovery Paper - Title
Discovery Paper - Journal
Discovery Paper - URL
SIMBAD LINK http://simbad.u-strasbg.fr/simbad/sim-basic?Ident=WASP-76+&submit=SIMBAD+search
Open Exoplanet Database Link
WASP-49 A b
WASP-49 A b

  • WASP-49 A b is an exoplanet orbiting the star WASP-49 A, located about 637.0 light-years (195.3 pc) away from Solar System. Its discovery was publicly announced on 2011.
  • The host star WASP-49 A has apparent magnitude of 22.0, with absolute magnitude of 15.5.
  • It is 1.1 times more massive and 0.4 times bigger compared with our Sun. The surface temperature is 3300 with its spectral types of M9
  • In this planetary system, the extrasolar planet WASP-49 A b orbits around the star WASP-49 A every 2.8 days with its orbital distance of 0.04 AU ( 5654799.5 km)
  • (Projected orbit of WASP-49 A b around its host star WASP-49 A)

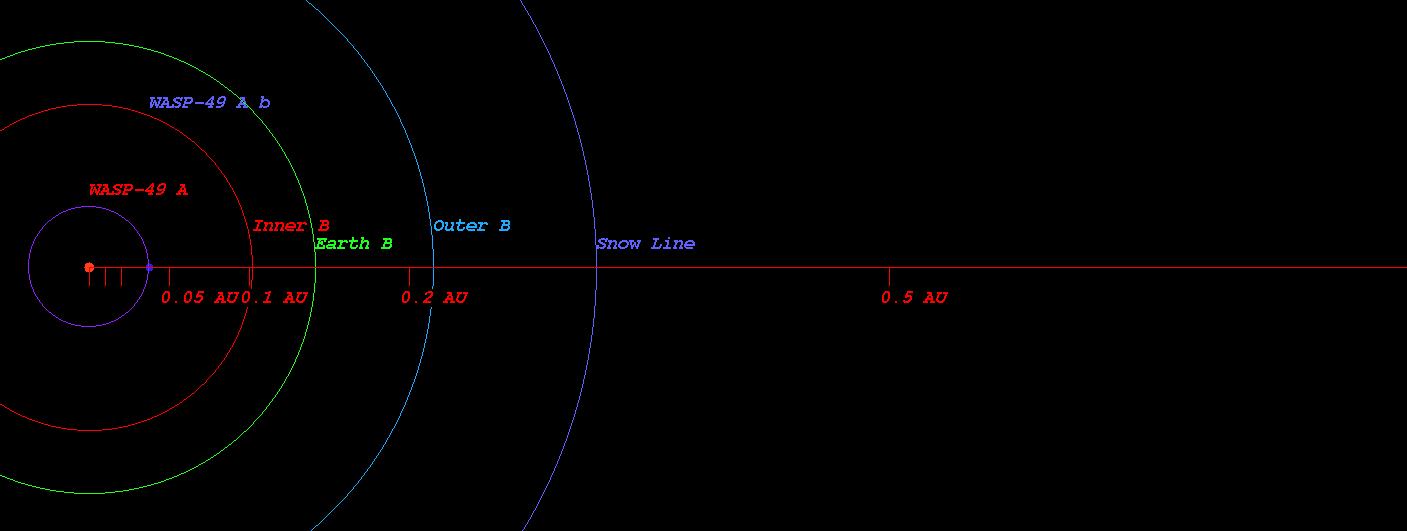

  • The Star WASP-49 A 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.102 AU ( 15301294.9 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.141 AU ( 21150388.3 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.215 AU ( 32228511.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 0.317 AU ( 47425666.0 km)
  • Radiation at Planetary Boundary of WASP-49 A b : 19132.04 W/m2

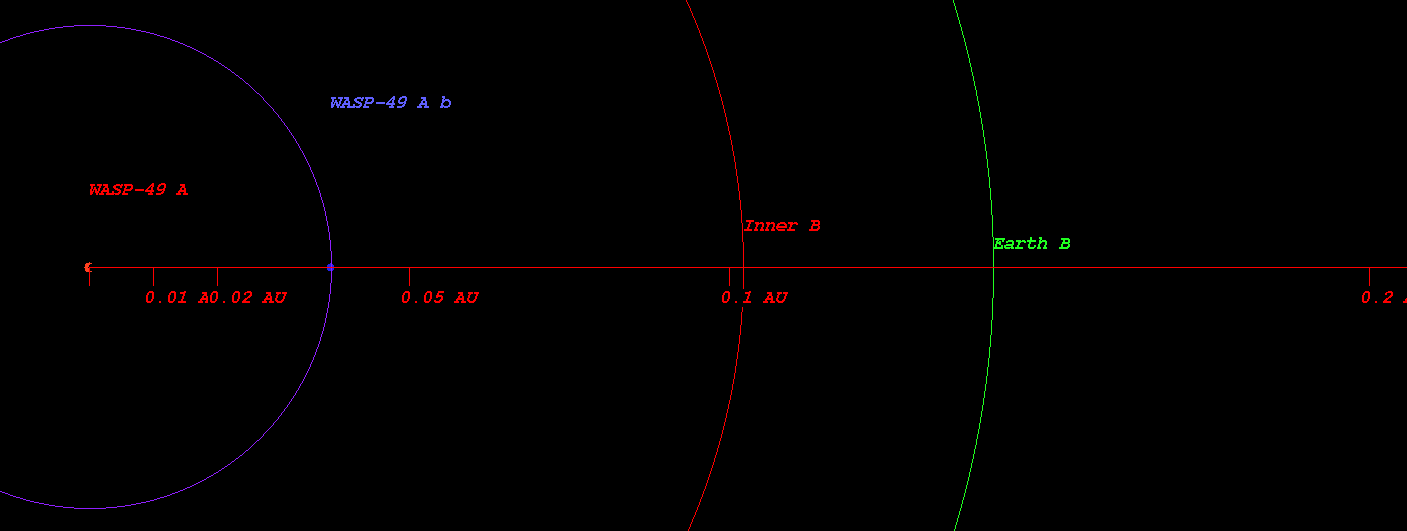

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star WASP-49 A)

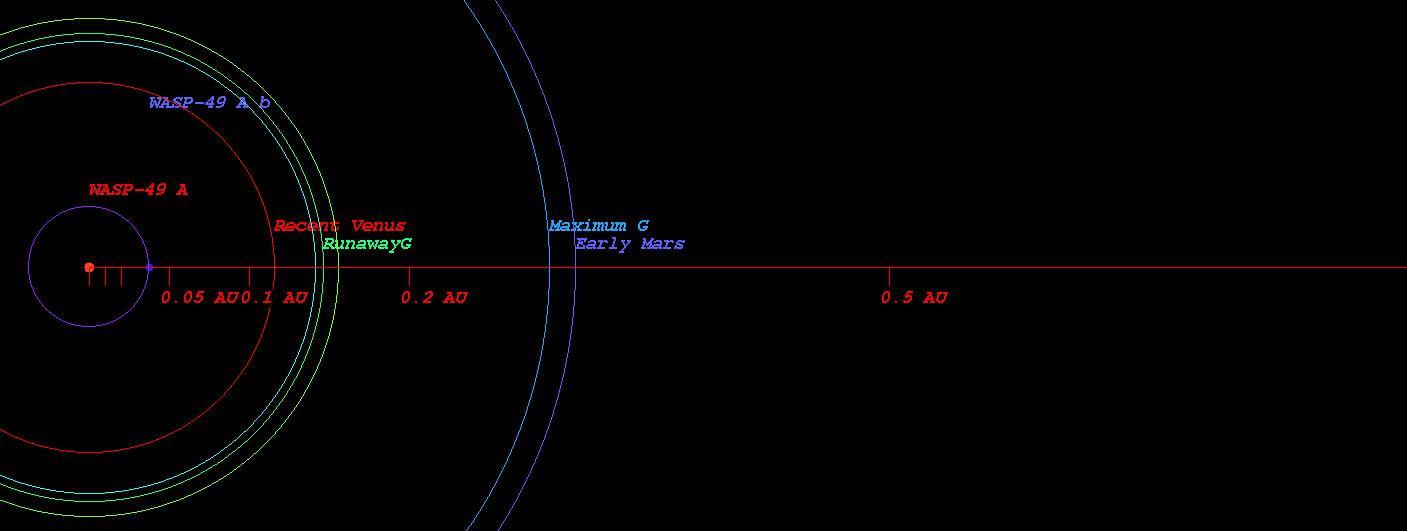

  • Kopparapu Recent Venus for Star WASP-49 A distance : 0.116 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star WASP-49 A distance : 0.147 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star WASP-49 A distance : 0.142 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star WASP-49 A distance : 0.156 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star WASP-49 A distance : 0.288 AU
  • Kopparapu Outer Boundary for Early Mars for Star WASP-49 A distance : 0.304 AU

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star WASP-49 A)



  • Original Kopparapu Recent Venus for Star WASP-49 A distance : 0.115 AU
  • Original Kopparapu Runaway Greenhouse for Star WASP-49 A distance : 0.152 AU
  • Original Kopparapu Moist Greenhouse for Star WASP-49 A distance : 0.152 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star WASP-49 A distance : 0.293 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star WASP-49 A distance : 0.304 AU

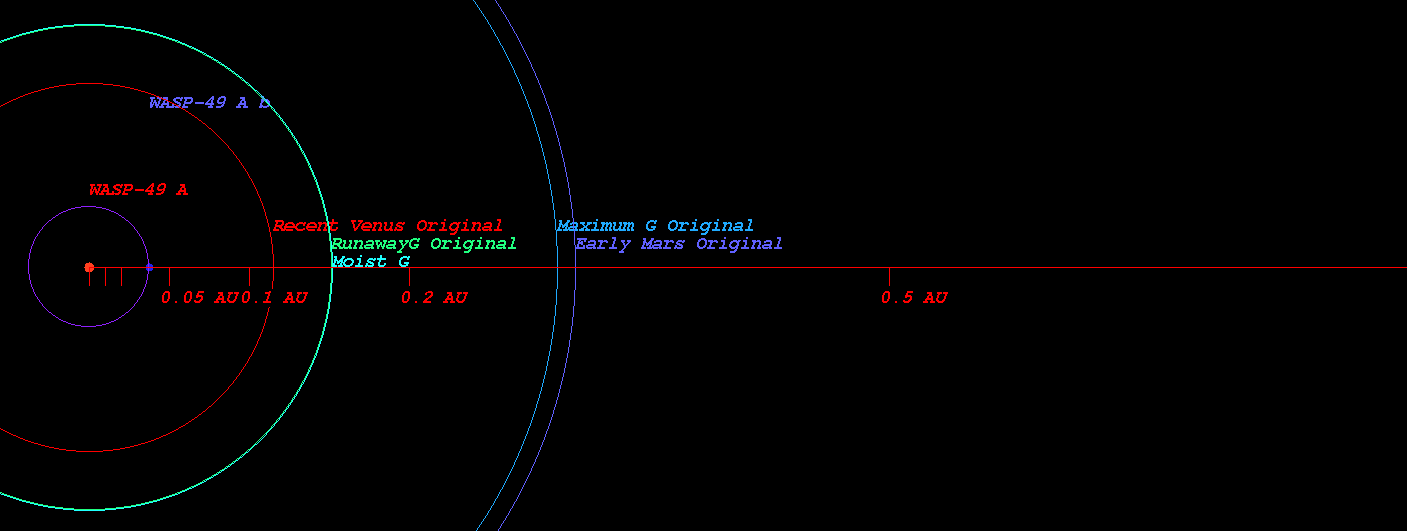

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star WASP-49 A)

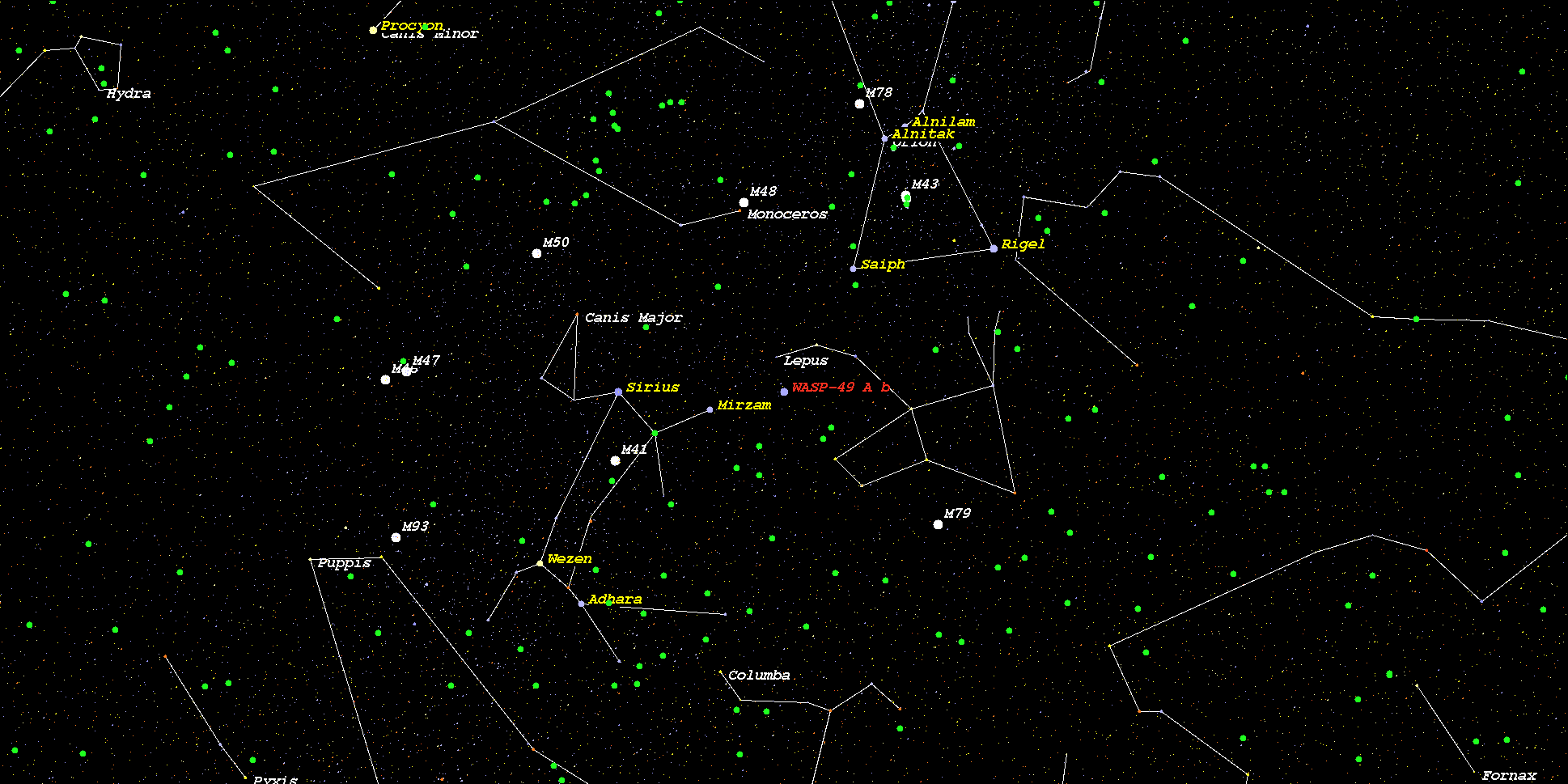

    (Position in Stellar Map of star WASP-49 A and its Exoplanet WASP-49 A b)



    (Zoomed position in Stellar Map of star WASP-49 A and its Exoplanet WASP-49 A b (zoom level 3))

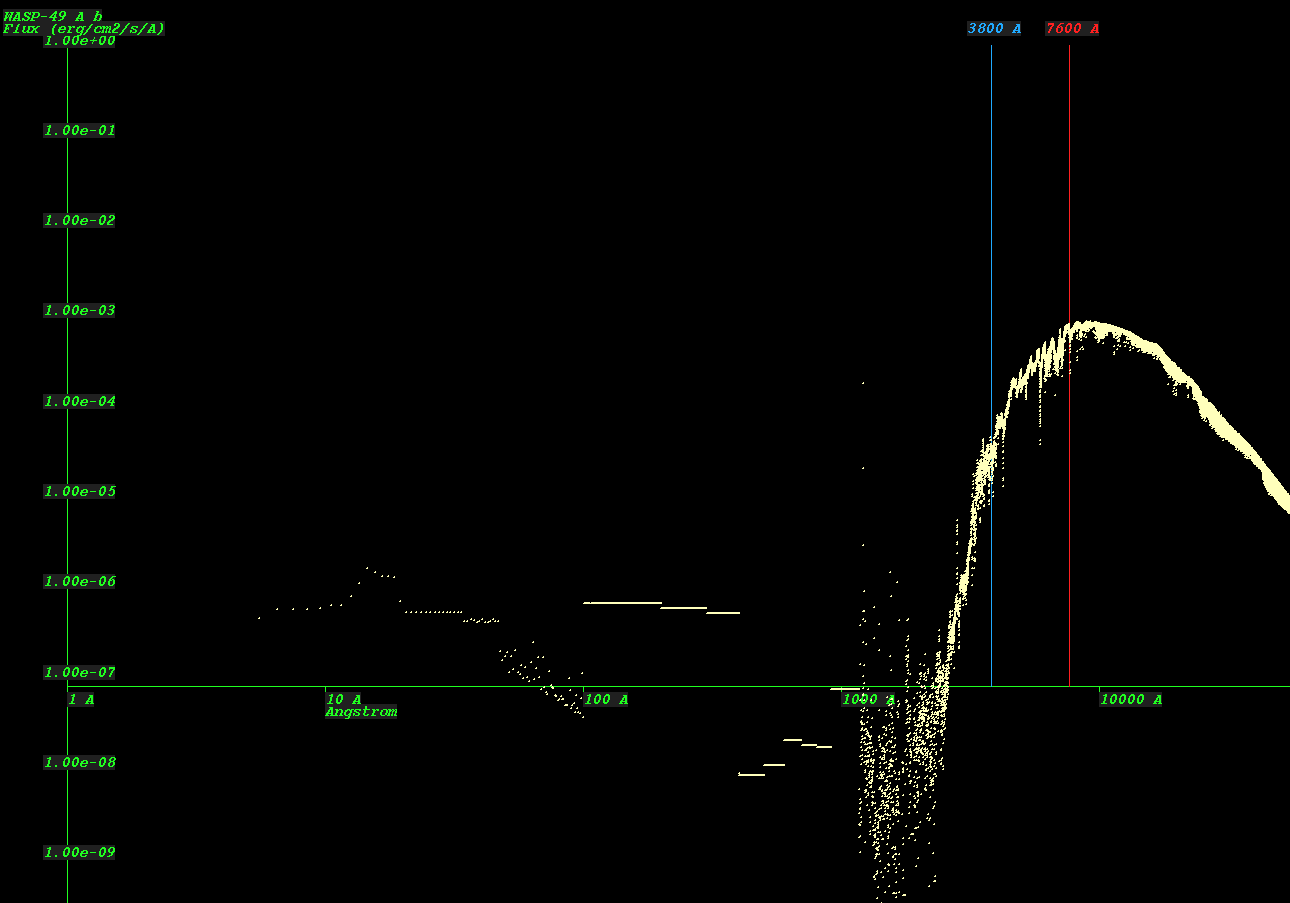

    (Synthetic Spectrum of star WASP-49 A*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
