Imaginary Picture of WISE 1711+3500 b

Display orbital revolution of WISE 1711+3500 b around the hoststar WISE 1711+3500
/
Exoplanet Name : WISE 1711+3500 b
Alternate Name : "WISE J1511+3500B, WISEPB J171104.60+350036.8"
Status : Confirmed
Radius (Rjup / Re): 0.9078 (Rjup) 10.1759 (Rearth)
Mass (Mjup / Me): 18.0000 (Mjup) 5722.8840 (Mearth)
Semi Major Axis / Orbital Distance Calculated 15.0000 (AU) 15.0000 (AU Est.)
Eccentricity : 0.0000
Orbital Period(Yrs) 342.2220
Orbital Period(Observed/Estimated) 125000.00 (Days Obs.) 115076.77 (Days Est.)
Surface Gravity (G Earth) 55.2678
Star Radiation at Atmospheric Boundary: 0.0 (W/m2)
Measured Temperature (K) 475.0 (K)
Blackbody T 0.1(K) 12.3 (K)
Blackbody T 0.3(K) 11.5 (K)
Blackbody T 0.7(K) 9.3 (K)
Tidally Locked Blackbody T 0.1(K) 14.6 (K)
Tidally Locked Blackbody T 0.3(K) 13.7 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : Imaging
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : WISE 1711+3500
Alternate Name : WISE J1511+3500B
Star Distance(LY) : 62.0
Stellar Radius(Rsun) : 0.0 (Rsun Estimated)
Stellar Mass(Msun) : 0.0 (Msun Measured) 0.0 (Msun Estimated)
Star Age : 3.0 (GY)
Temperature : 5500 (K)
Spectral type : T8
UV portion[%]: 6.9
Visible portion[%]: 43.2
IR portion[%]: 49.9
Metalicity : 0.0
Absolute Magnitude: 16.6
Apparent Magnitude: 18.0
Right Ascension(RA) 257.7708
Declination (DEC) 35.0103
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors 0
Discovery Paper - Title 0
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK
Open Exoplanet Database Link 0
WISE 1711+3500 b
WISE 1711+3500 b

  • WISE 1711+3500 b is an exoplanet orbiting the star WISE 1711+3500, located about 62.0 light-years (19.0 pc) away from Solar System. Its discovery was publicly announced on 2012.
  • The host star WISE 1711+3500 has apparent magnitude of 18.0, with absolute magnitude of 16.6.
  • It is 0.0 times more massive and 0.0 times bigger compared with our Sun. The surface temperature is 5500 with its spectral types of T8
  • In this planetary system, the extrasolar planet WISE 1711+3500 b orbits around the star WISE 1711+3500 every 125000.0 days with its orbital distance of 15.00 AU ( 2243968060.5 km)

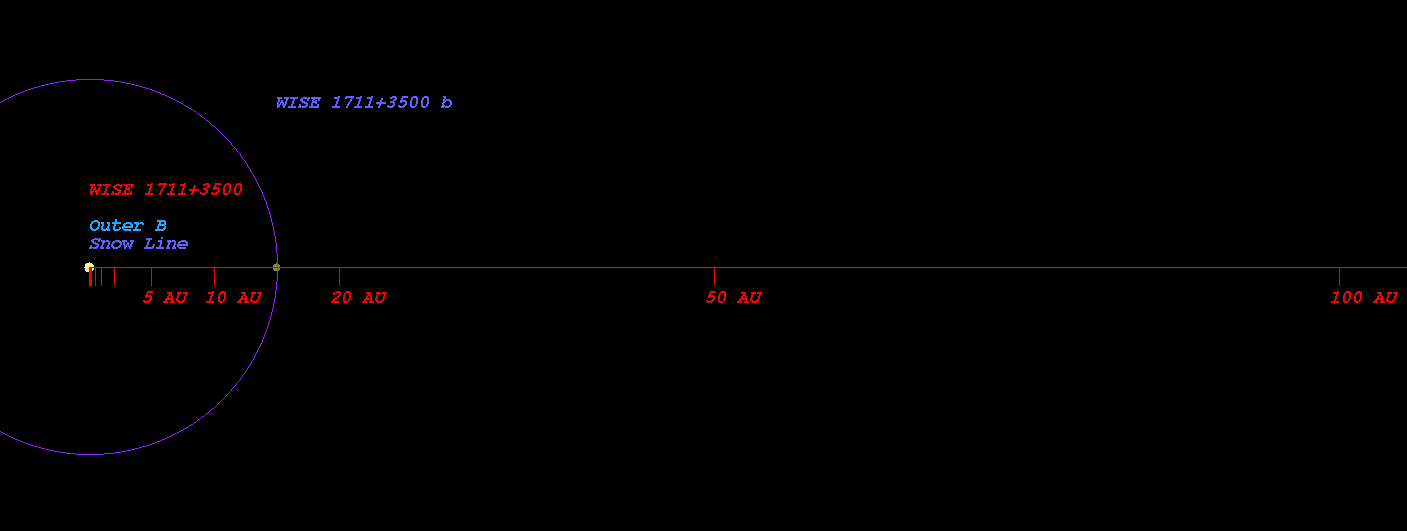

  • (Projected orbit of WISE 1711+3500 b around its host star WISE 1711+3500)


  • The Star WISE 1711+3500 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.022 AU ( 3333207.9 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.031 AU ( 4607364.5 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 0.047 AU ( 7020603.8 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 0.069 AU ( 10331126.1 km)
  • Radiation at Planetary Boundary of WISE 1711+3500 b : 0.01 W/m2

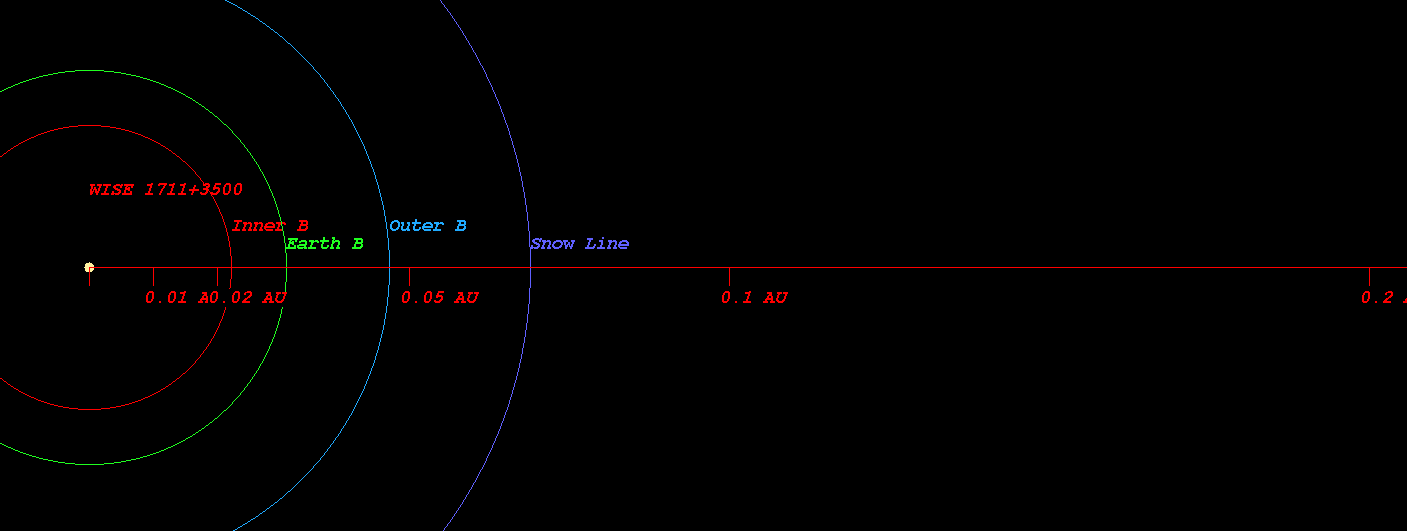

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star WISE 1711+3500)



  • Kopparapu Recent Venus for Star WISE 1711+3500 distance : 0.023 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star WISE 1711+3500 distance : 0.030 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star WISE 1711+3500 distance : 0.029 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star WISE 1711+3500 distance : 0.031 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star WISE 1711+3500 distance : 0.053 AU
  • Kopparapu Outer Boundary for Early Mars for Star WISE 1711+3500 distance : 0.056 AU

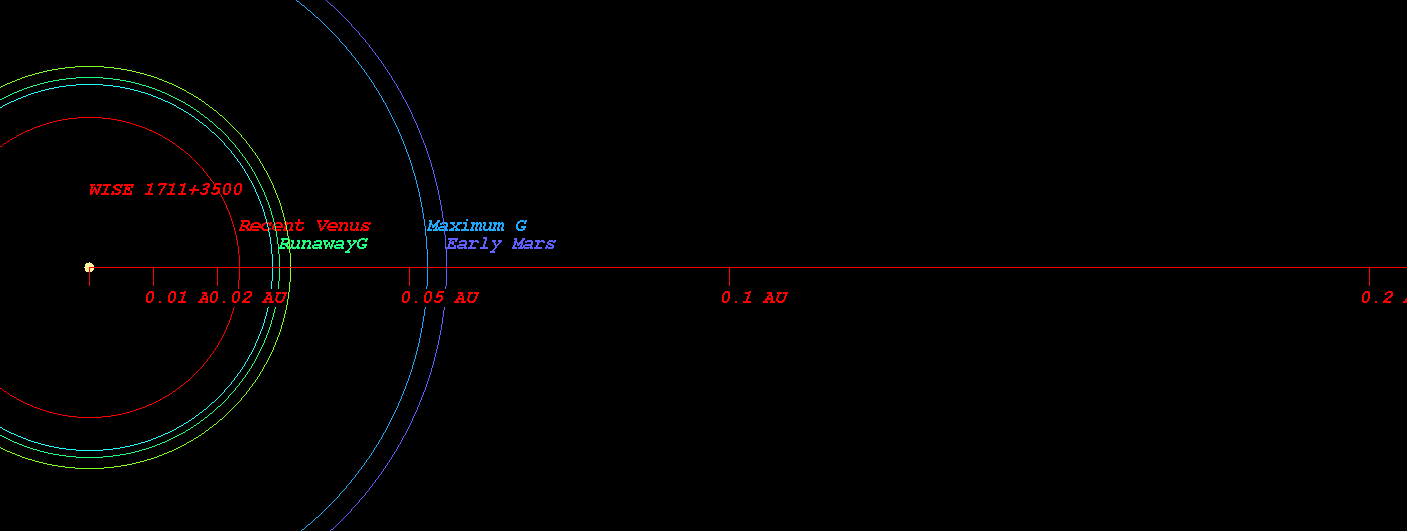

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star WISE 1711+3500)



  • Original Kopparapu Recent Venus for Star WISE 1711+3500 distance : 0.023 AU
  • Original Kopparapu Runaway Greenhouse for Star WISE 1711+3500 distance : 0.031 AU
  • Original Kopparapu Moist Greenhouse for Star WISE 1711+3500 distance : 0.031 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star WISE 1711+3500 distance : 0.054 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star WISE 1711+3500 distance : 0.056 AU

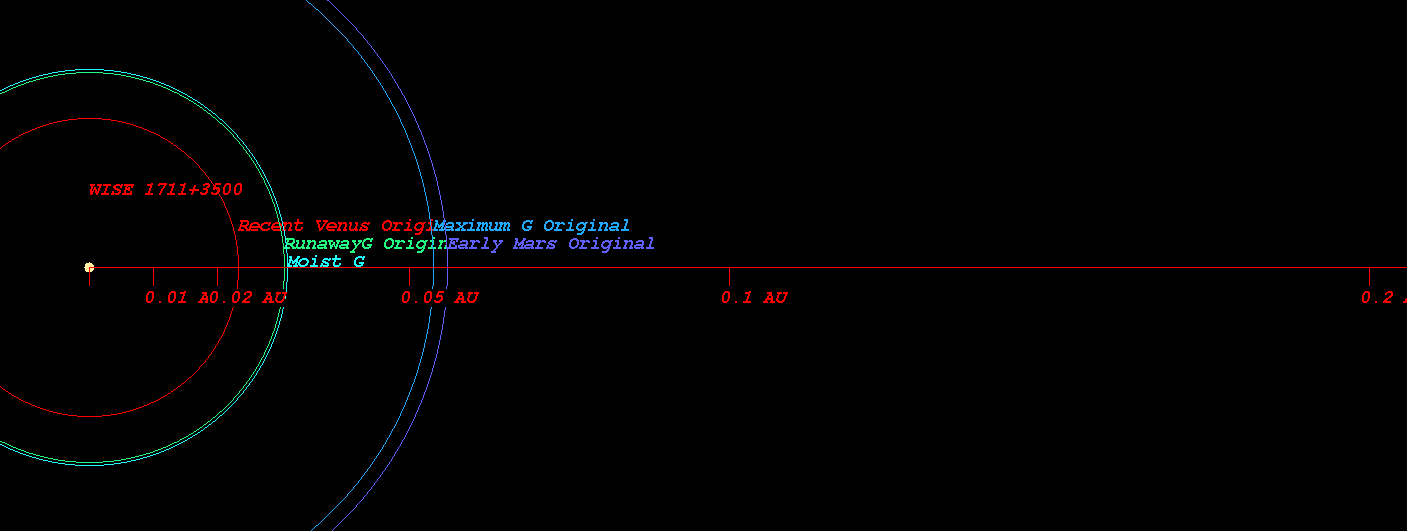

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star WISE 1711+3500)



    (Position in Stellar Map of star WISE 1711+3500 and its Exoplanet WISE 1711+3500 b)



    (Zoomed position in Stellar Map of star WISE 1711+3500 and its Exoplanet WISE 1711+3500 b (zoom level 3))

    (Synthetic Spectrum of star WISE 1711+3500*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
