Imaginary Picture of YBP1514 b

Display orbital revolution of YBP1514 b around the hoststar YBP1514
/
Exoplanet Name : YBP1514 b
Alternate Name :
Status : Confirmed
Radius (Rjup / Re): 0.9078 (Rjup) 10.1759 (Rearth)
Mass (Mjup / Me): 0.4000 (Mjup) 127.1752 (Mearth)
Semi Major Axis / Orbital Distance Calculated 0.0000 (AU) 0.0573 (AU Est.)
Eccentricity : 0.3900
Orbital Period(Yrs) 0.0140
Orbital Period(Observed/Estimated) 5.12 (Days Obs.) 0.00 (Days Est.)
Surface Gravity (G Earth) 1.2282
Star Radiation at Atmospheric Boundary: 317413.9 (W/m2)
Measured Temperature (K) 0.0 (K)
Blackbody T 0.1(K) 1059.4 (K)
Blackbody T 0.3(K) 994.9 (K)
Blackbody T 0.7(K) 804.9 (K)
Tidally Locked Blackbody T 0.1(K) 1259.8 (K)
Tidally Locked Blackbody T 0.3(K) 1183.1 (K)
Size Class: Jupiter-size
Mass Class:
Detection Type : Radial Velocity
Mass Detection :
Radius Detection :
Habitability by Solar Eq. Astronomical Unit: Not habitable
Habitability by Kopparapu: Not habitable
Star Name : YBP1514
Alternate Name :
Star Distance(LY) : 2446.2
Stellar Radius(Rsun) : 0.9 (Rsun Measured)
Stellar Mass(Msun) : 1.0 (Msun Measured) 1.0 (Msun Estimated)
Star Age : 0.0 (GY)
Temperature : 5725 (K)
Spectral type : G5V
UV portion[%]: 7.7
Visible portion[%]: 44.5
IR portion[%]: 47.8
Metalicity : 0.0
Absolute Magnitude: 5.4
Apparent Magnitude: 14.8
Right Ascension(RA) 132.7542
Declination (DEC) 11.8867
Hubble Space Telescope Guide Star Catalog (GSC) ID
Discovered by
Discovery Paper - Authors "A. Brucalassi, L. Pasquini, R. Saglia, M.T. Ruiz, P. Bonifacio, L. R. Bedin, K. Biazzo, C. Melo, C. Lovis, and S. Randich"
Discovery Paper - Title Three planetary companions around M67 stars.
Discovery Paper - Journal 0
Discovery Paper - URL 0
SIMBAD LINK
Open Exoplanet Database Link http://www.openexoplanetcatalogue.com/planet/YBP1514%20b/
YBP1514 b
YBP1514 b

  • YBP1514 b is an exoplanet orbiting the star YBP1514, located about 2446.2 light-years (750.0 pc) away from Solar System. Its discovery was publicly announced on 2014.
  • The host star YBP1514 has apparent magnitude of 14.8, with absolute magnitude of 5.4.
  • It is 1.0 times more massive and 0.9 times bigger compared with our Sun. The surface temperature is 5725 with its spectral types of G5V
  • In this planetary system, the extrasolar planet YBP1514 b orbits around the star YBP1514 every 5.1 days with its orbital distance of 0.06 AU ( 8577403.9 km)

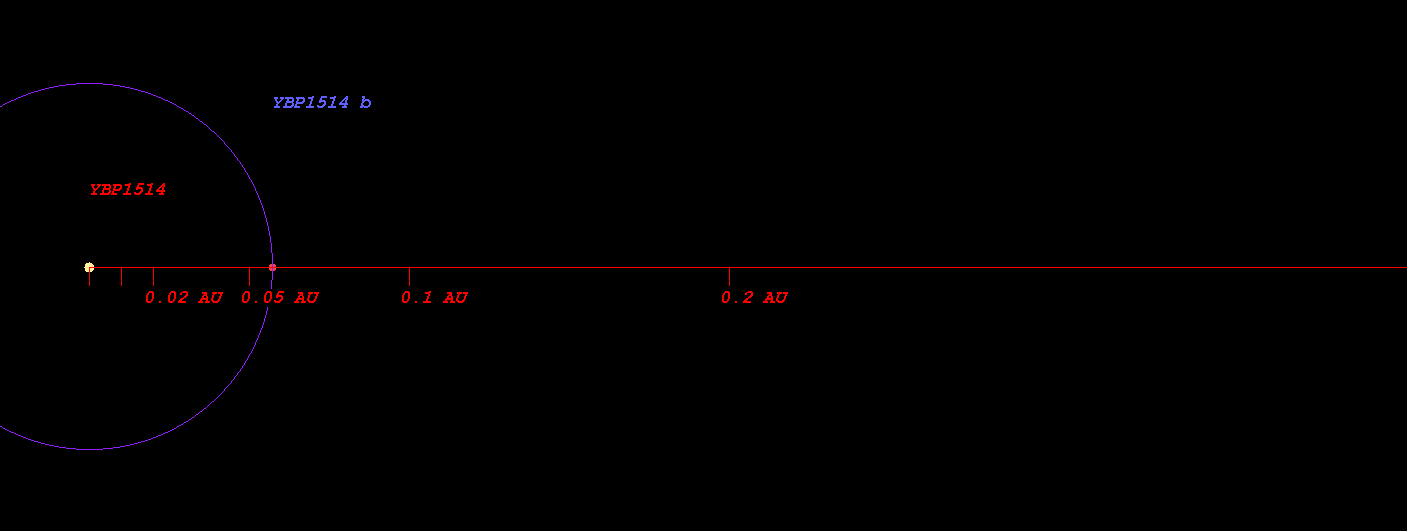

  • (Projected orbit of YBP1514 b around its host star YBP1514)


  • The Star YBP1514 's habitable zone is located at the following distance
  • Inner Boundary (the orbital distance at Venus's Equivalent Radiation ) : 0.632 AU ( 94536408.9 km)
  • Earth Boundary (the orbital distance at Earth's Equivalent Radiation) : 0.874 AU ( 130674022.5 km)
  • Outer Boundary (the orbital distance at Mars's Equivalent Radiation) : 1.331 AU ( 199118292.1 km)
  • Snow Line (the orbital distance at Snow Line Equivalent Radiation) : 1.959 AU ( 293011289.7 km)
  • Radiation at Planetary Boundary of YBP1514 b : 317413.86 W/m2

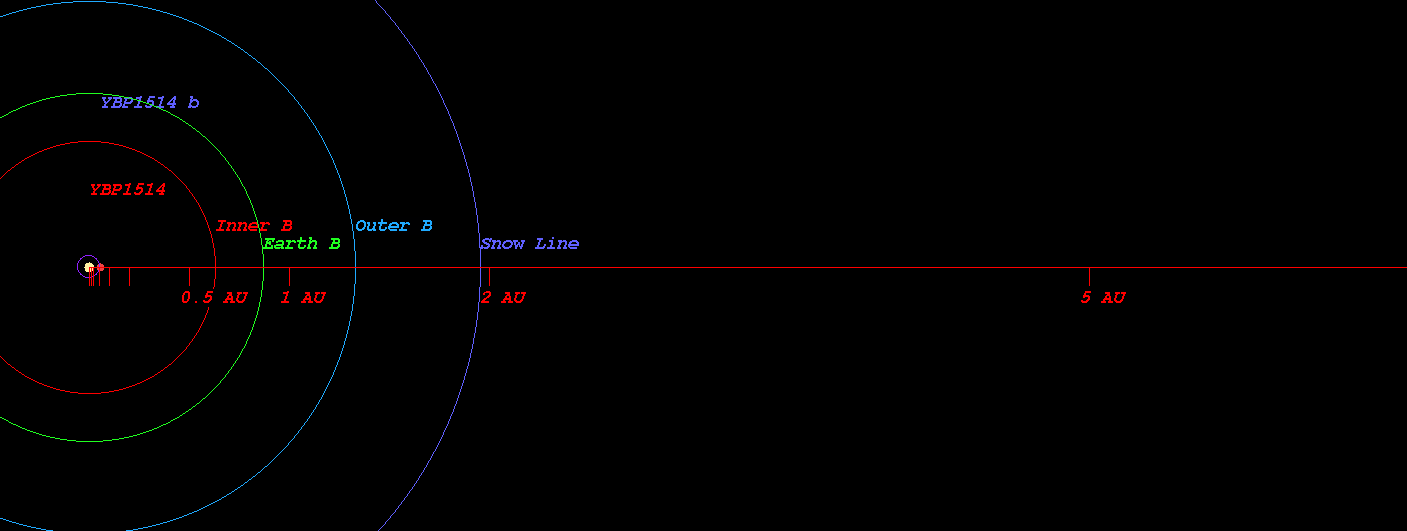

    (Habitable zone calculated based on SEAU(Solar Equivalent Astronomical Unit) around the star YBP1514)



  • Kopparapu Recent Venus for Star YBP1514 distance : 0.657 AU
  • Kopparapu Runaway Greenhouse for Earth-sized planet for Star YBP1514 distance : 0.832 AU
  • Kopparapu Runaway Greenhouse for Super-Earth-sized planet for Star YBP1514 distance : 0.804 AU
  • Kopparapu Runaway Greenhouse for Mars-sized planet for Star YBP1514 distance : 0.881 AU
  • Kopparapu Outer Boundary for Maximum Greenhouse for Star YBP1514 distance : 1.471 AU
  • Kopparapu Outer Boundary for Early Mars for Star YBP1514 distance : 1.552 AU

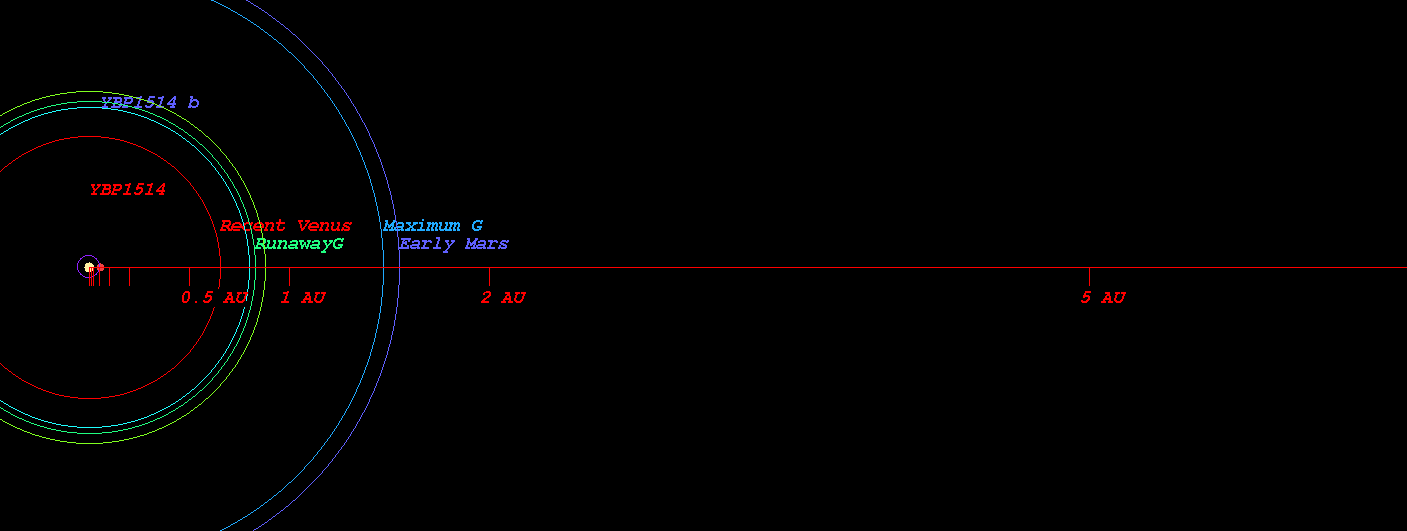

    (Habitable zone calculated based on Kopparapu et al.(2013) around the star YBP1514)



  • Original Kopparapu Recent Venus for Star YBP1514 distance : 0.657 AU
  • Original Kopparapu Runaway Greenhouse for Star YBP1514 distance : 0.855 AU
  • Original Kopparapu Moist Greenhouse for Star YBP1514 distance : 0.870 AU
  • Original Kopparapu Outer Boundary for Maximum Greenhouse for Star YBP1514 distance : 1.497 AU
  • Original Kopparapu Outer Boundary for Early Mars for Star YBP1514 distance : 1.557 AU

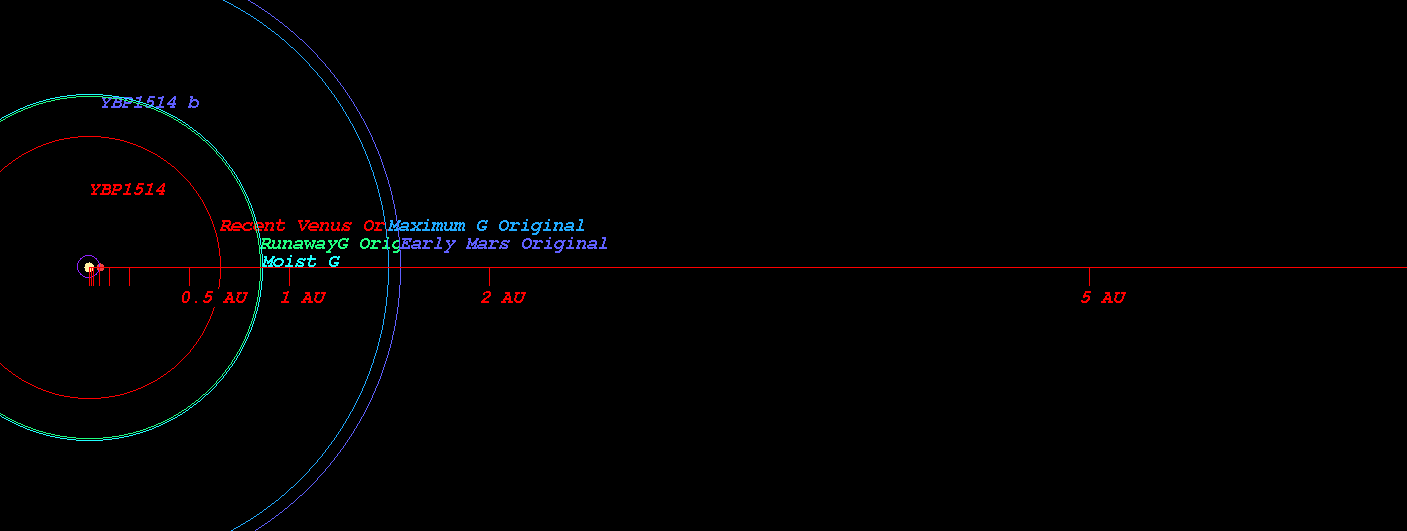

    (Habitable zone calculated based on Kopparapu et al.(Original) around the star YBP1514)



    (Position in Stellar Map of star YBP1514 and its Exoplanet YBP1514 b)

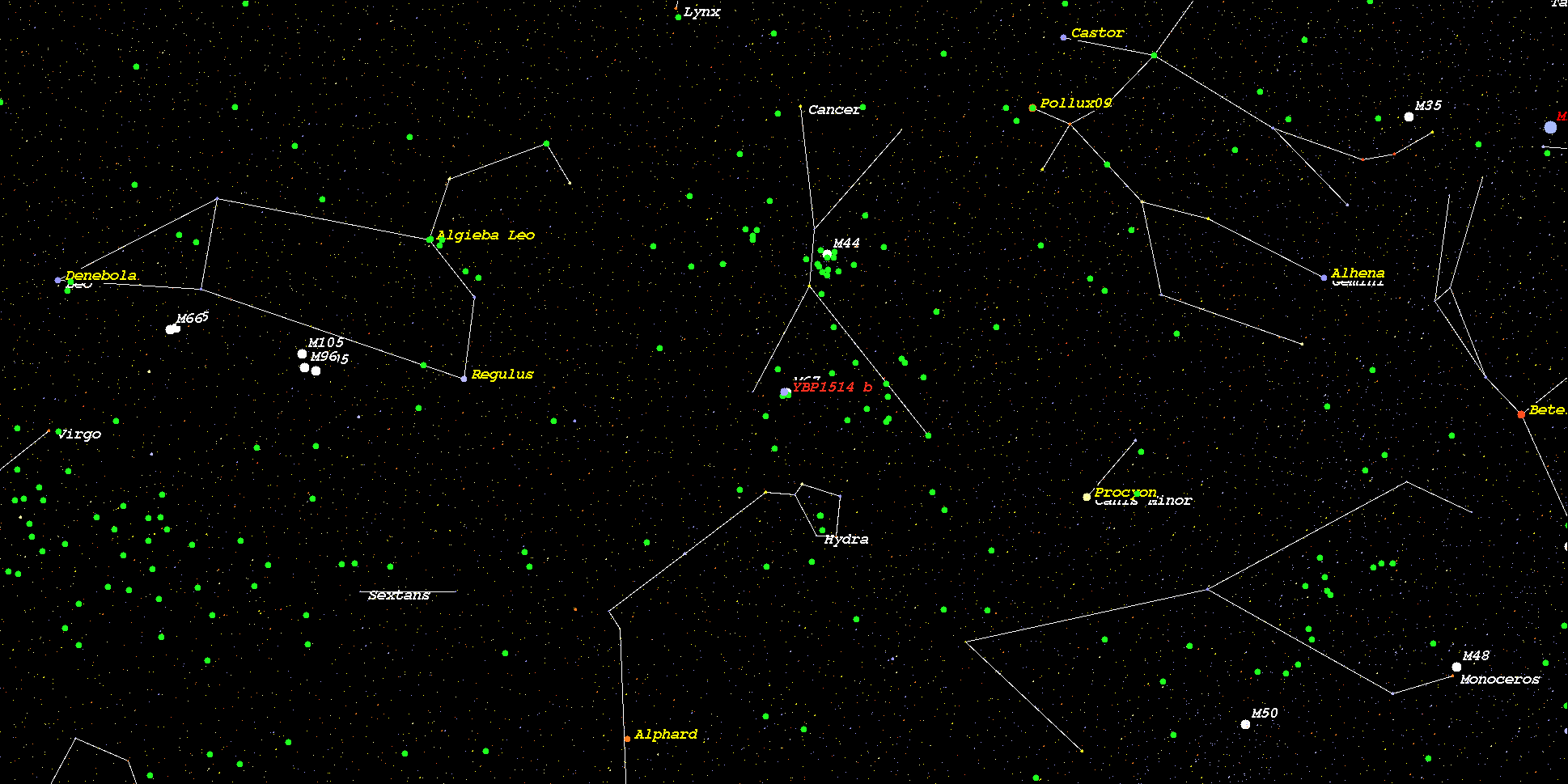

    (Zoomed position in Stellar Map of star YBP1514 and its Exoplanet YBP1514 b (zoom level 3))

    (Synthetic Spectrum of star YBP1514*)
    *Yamashiki YA et al. 2019 ApJ 881 114
    MUSCLES Paper I - France et al. 2016 ApJ 820 89
    MUSCLES Paper II- Youngblood et al. 2016 ApJ 824 101
    MUSCLES Paper III- Loyd et al. 2016 ApJ 824 102
